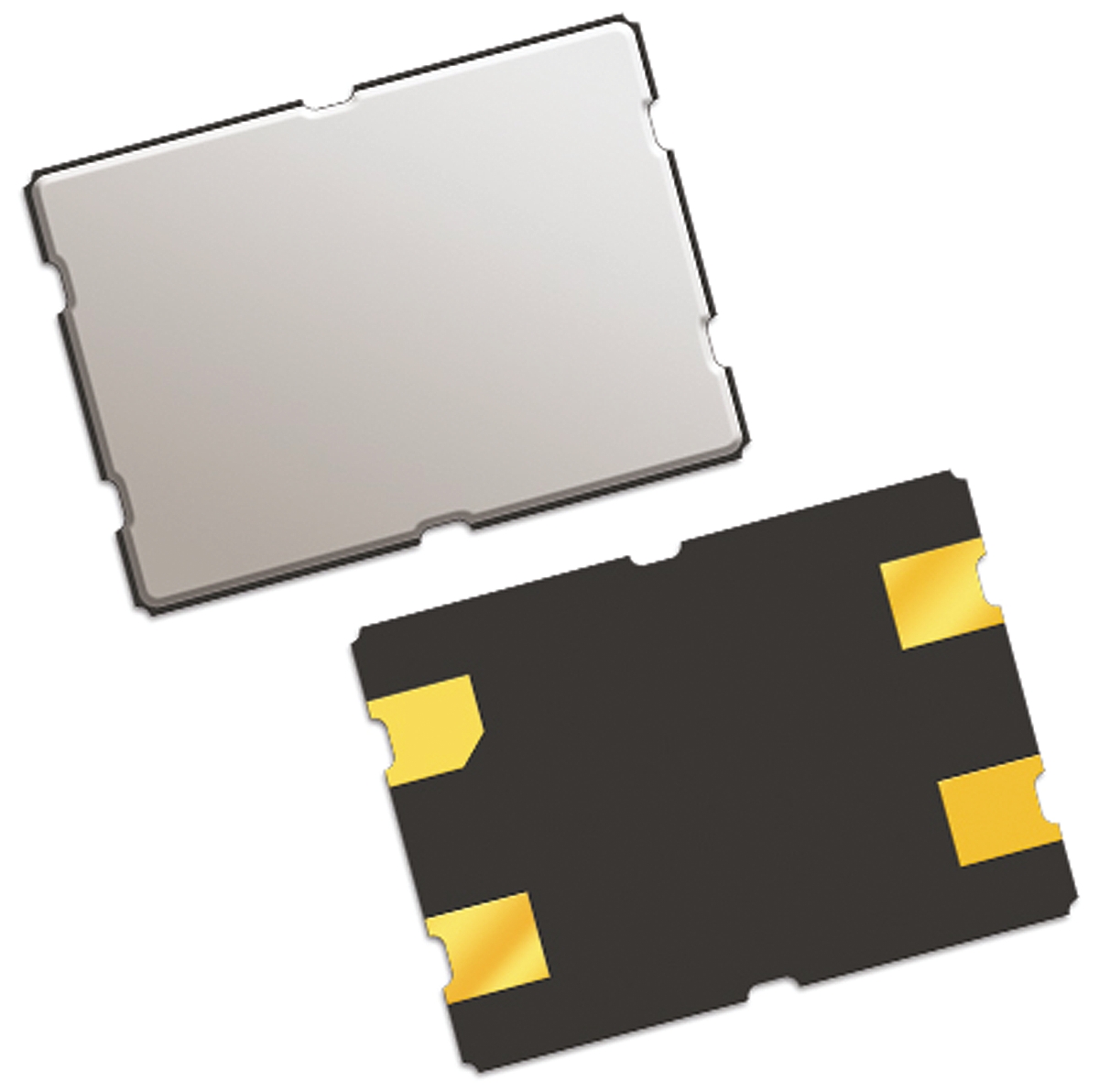

Crystal 10MHz, ±10ppm, 4-Pin SMD, 7 x 5 x 1mm

QC7A10-0000F12B12R Crystal 10MHz, ±10ppm, 4-Pin SMD, 7 x 5 x 1mm
QANTEK

Product Information

Series Resistance:
110Ω
Frequency Tolerance:
±10ppm
Dimensions:
7 x 5 x 1mm
Mounting Type:
Surface Mount
Height:
1mm
Frequency Stability:
±20ppm
Width:
5mm
Length:
7mm
Package Type:
SMD
Minimum Operating Temperature:
-40°C
Load Capacitance:
12pF
Maximum Operating Temperature:
85°C
Pin Count:
4
Standard Frequency:
10MHz
RoHs Compliant
Checking for live stock

This is Crystal 10MHz ±10ppm 4-Pin SMD 7 x 5 x 1mm manufactured by QANTEK. The manufacturer part number is QC7A10.0000F12B12R. It has 110ω series resistance . It has a ±10ppm of frequency tolerance. The given dimensions of the product include 7 x 5 x 1mm. The product is available in surface mount configuration. In addition, the height is 1mm. It also carries ±20ppm of stable frequency value. Furthermore, the product is 5mm wide. Its accurate length is 7mm. The package is a sort of smd. Whereas, the minimum operating temperature of the product is -40°c. It features 12pf load capacitance. It has a maximum operating temperature of 85°c. It contains 4 pins. This versatile product has 10mhz of standard frequency.

pdf icon
5x7 4-Pad SMD Quartz Crystal Unit(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search QC7A10.0000F12B12R on website for other similar products.
We accept all major payment methods for all products including ET14040220. Please check your shopping cart at the time of order.
You can order QANTEK brand products with QC7A10.0000F12B12R directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Crystal Units category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Crystal 10MHz, ±10ppm, 4-Pin SMD, 7 x 5 x 1mm. You can also check on our website or by contacting our customer support team for further order details on Crystal 10MHz, ±10ppm, 4-Pin SMD, 7 x 5 x 1mm.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14040220 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "QANTEK" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14040220.
Yes. We ship QC7A10.0000F12B12R Internationally to many countries around the world.
