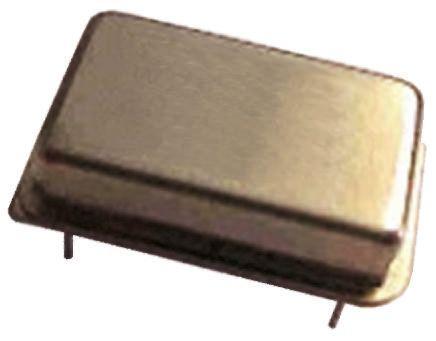

5H14ET-7.3728, Crystal Oscillator, 7.3728 MHz, ±50ppm HCMOS, TTL 15pF, 14-Pin PDIP, 20.2 x 10.7 x 5.08mm

5H14ET-7-3728 5H14ET-7.3728, Crystal Oscillator, 7.3728 MHz, ±50ppm HCMOS, TTL 15pF, 14-Pin PDIP, 20.2 x 10.7 x 5.08mm
MERCURY

Product Information

Dimensions:
20.2 x 10.7 x 5.08mm
Mounting Type:
Through Hole
Output Level:
HCMOS, TTL
Frequency Ageing:
±5 ppm/yr
Maximum Symmetry:
40/60%
Height:
5.08mm
Frequency Stability:
±50ppm
Width:
10.7mm
Length:
20.2mm
Package Type:
PDIP
Output Frequency:
7.3728 MHz
Minimum Operating Temperature:
-40 °C
Minimum Operating Supply Voltage:
4.75 V
Maximum Operating Supply Voltage:
5.25 V
Load Capacitance:
15pF
Maximum Operating Temperature:
+85 °C
Pin Count:
14
RoHs Compliant
Checking for live stock

This is Crystal Oscillator 7.3728 MHz ±50ppm HCMOS TTL 15pF 14-Pin PDIP 20.2 x 10.7 x 5.08mm manufactured by MERCURY. The manufacturer part number is 5H14ET-7.3728. The given dimensions of the product include 20.2 x 10.7 x 5.08mm. The product is available in through hole configuration. Its output level is hcmos, ttl . Its frequency ageing is ±5 ppm/yr . It has maximum 40/60% symmetry . In addition, the height is 5.08mm. It also carries ±50ppm of stable frequency value. Furthermore, the product is 10.7mm wide. Its accurate length is 20.2mm. The package is a sort of pdip. This product has an output frequency range of 7.3728 mhz. Whereas, the minimum operating temperature of the product is -40 °c. While its minimum operating supply voltage is 4.75 v. It has 5.25 v maximum operating supply voltage. It features 15pf load capacitance. It has a maximum operating temperature of +85 °c. It contains 14 pins.

pdf icon
H14 OSCILLATORS - 14 pin DIL(Technical Reference)
