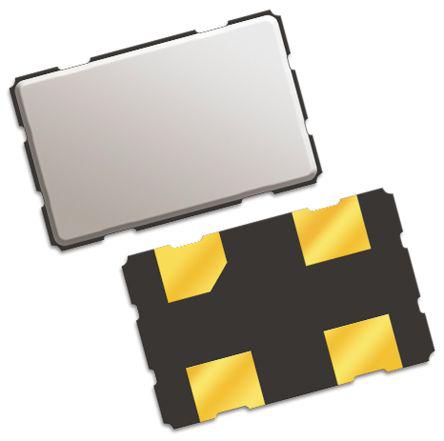

Name: QTX533A40.0000B15R, QT Quarztechnik
Brand: QT Quarztechnik
SKU: ET13967629
Price: 1.36 GBP
Availability: InStock

QTX533A40-0000B15R QTX533A40.0000B15R, Crystal Oscillator, 40 MHz, ±25ppm HCMOS, TTL 15pF, 4-Pin SMD, 5.2 x 3.4 x 1.3mm

(0)

Product Information

Dimensions:

5.2 x 3.4 x 1.3mm

Mounting Type:

Surface Mount

Output Level:

HCMOS, TTL

Frequency Ageing:

±5 ppm/yr

Maximum Symmetry:

45/55%

Height:

1.3mm

Frequency Stability:

±25ppm

Width:

3.4mm

Length:

5.2mm

Package Type:

SMD

Output Frequency:

40 MHz

Minimum Operating Temperature:

-40 °C

Checking for live stock

This is Crystal Oscillator 40 MHz ±25ppm HCMOS TTL 15pF 4-Pin SMD 5.2 x 3.4 x 1.3mm manufactured by QT Quarztechnik. The manufacturer part number is QTX533A40.0000B15R. The given dimensions of the product include 5.2 x 3.4 x 1.3mm. The product is available in surface mount configuration. Its output level is hcmos, ttl . Its frequency ageing is ±5 ppm/yr . It has maximum 45/55% symmetry . In addition, the height is 1.3mm. It also carries ±25ppm of stable frequency value. Furthermore, the product is 3.4mm wide. Its accurate length is 5.2mm. The package is a sort of smd. This product has an output frequency range of 40 mhz. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.3 v maximum operating supply voltage. It features 15pf load capacitance. It has a maximum operating temperature of +85 °c. It contains 4 pins.

3.2x5 SMD HCMOS Clock Oscillator(Technical Reference)
