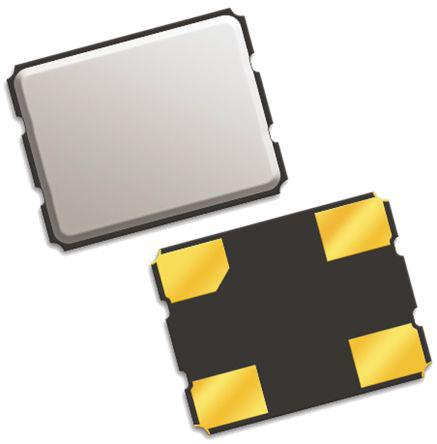

QX333A20.00000B15R, Crystal Oscillator, 20 MHz, ±25ppm HCMOS 15pF, 4-Pin SMD, 3.2 x 2.5 x 1.2mm

Enrgtech Part No: ET13845287
|
Manufacturer Part No:
QX333A20.00000B15R
|
Manufacturer: QANTEK

QX333A20-00000B15R QX333A20.00000B15R, Crystal Oscillator, 20 MHz, ±25ppm HCMOS 15pF, 4-Pin SMD, 3.2 x 2.5 x 1.2mm

Product Information

Dimensions:

3.2 x 2.5 x 1.2mm

Mounting Type:

Surface Mount

Output Level:

HCMOS

Frequency Ageing:

±5 ppm/yr

Maximum Symmetry:

60%

Height:

1.2mm

Frequency Stability:

±25ppm

Width:

2.5mm

Length:

3.2mm

Package Type:

SMD

Output Frequency:

20 MHz

Minimum Operating Temperature:

-40 °C

Checking for live stock

This is Crystal Oscillator 20 MHz ±25ppm HCMOS 15pF 4-Pin SMD 3.2 x 2.5 x 1.2mm manufactured by QANTEK. The manufacturer part number is QX333A20.00000B15R. The given dimensions of the product include 3.2 x 2.5 x 1.2mm. The product is available in surface mount configuration. Its output level is hcmos . Its frequency ageing is ±5 ppm/yr . It has maximum 60% symmetry . In addition, the height is 1.2mm. It also carries ±25ppm of stable frequency value. Furthermore, the product is 2.5mm wide. Its accurate length is 3.2mm. The package is a sort of smd. This product has an output frequency range of 20 mhz. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.3 v maximum operating supply voltage. It features 15pf load capacitance. It has a maximum operating temperature of +85 °c. It contains 4 pins.

2.5x3.2 SMD HCMOS Clock Oscillator(Technical Reference)
