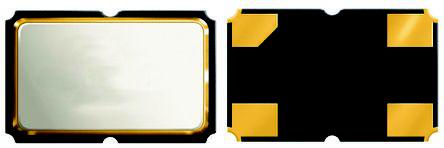

ASFL1-16.000MHz-EK, Crystal Oscillator, 16 MHz, ±30ppm HCMOS, TTL 15pF, 4-Pin SMD, 5 x 3.2 x 1.3mm

Enrgtech Part No: ET13815004
|
Manufacturer Part No:
ASFL1-16.000MHz-EK
|
Manufacturer: Abracon

ASFL1-16-000MHz-EK ASFL1-16.000MHz-EK, Crystal Oscillator, 16 MHz, ±30ppm HCMOS, TTL 15pF, 4-Pin SMD, 5 x 3.2 x 1.3mm

Product Information

Dimensions:

5 x 3.2 x 1.3mm

Mounting Type:

Surface Mount

Output Level:

HCMOS, TTL

Frequency Ageing:

±5 (First Year) ppm/yr

Maximum Symmetry:

40/60%

Height:

1.3mm

Frequency Stability:

±30ppm

Width:

3.2mm

Length:

5mm

Package Type:

SMD

Output Frequency:

16 MHz

Minimum Operating Temperature:

-20 °C

Checking for live stock

This is Crystal Oscillator 16 MHz ±30ppm HCMOS TTL 15pF 4-Pin SMD 5 x 3.2 x 1.3mm manufactured by Abracon. The manufacturer part number is ASFL1-16.000MHz-EK. The given dimensions of the product include 5 x 3.2 x 1.3mm. The product is available in surface mount configuration. Its output level is hcmos, ttl . Its frequency ageing is ±5 (first year) ppm/yr . It has maximum 40/60% symmetry . In addition, the height is 1.3mm. It also carries ±30ppm of stable frequency value. Furthermore, the product is 3.2mm wide. Its accurate length is 5mm. The package is a sort of smd. This product has an output frequency range of 16 mhz. Whereas, the minimum operating temperature of the product is -20 °c. While its minimum operating supply voltage is 2.97 v. It has 3.63 v maximum operating supply voltage. It features 15pf load capacitance. It has a maximum operating temperature of +70 °c. It contains 4 pins.

3.3V HCMOS / TTL COMPATIBLE SMD CRYSTAL CLOCK OSCILLATOR ASFL1 Data Sheet(Technical Reference)
