Name: 165142, TE Connectivity
Brand: TE Connectivity
SKU: ET13970130
Price: 0.34 GBP
Availability: InStock

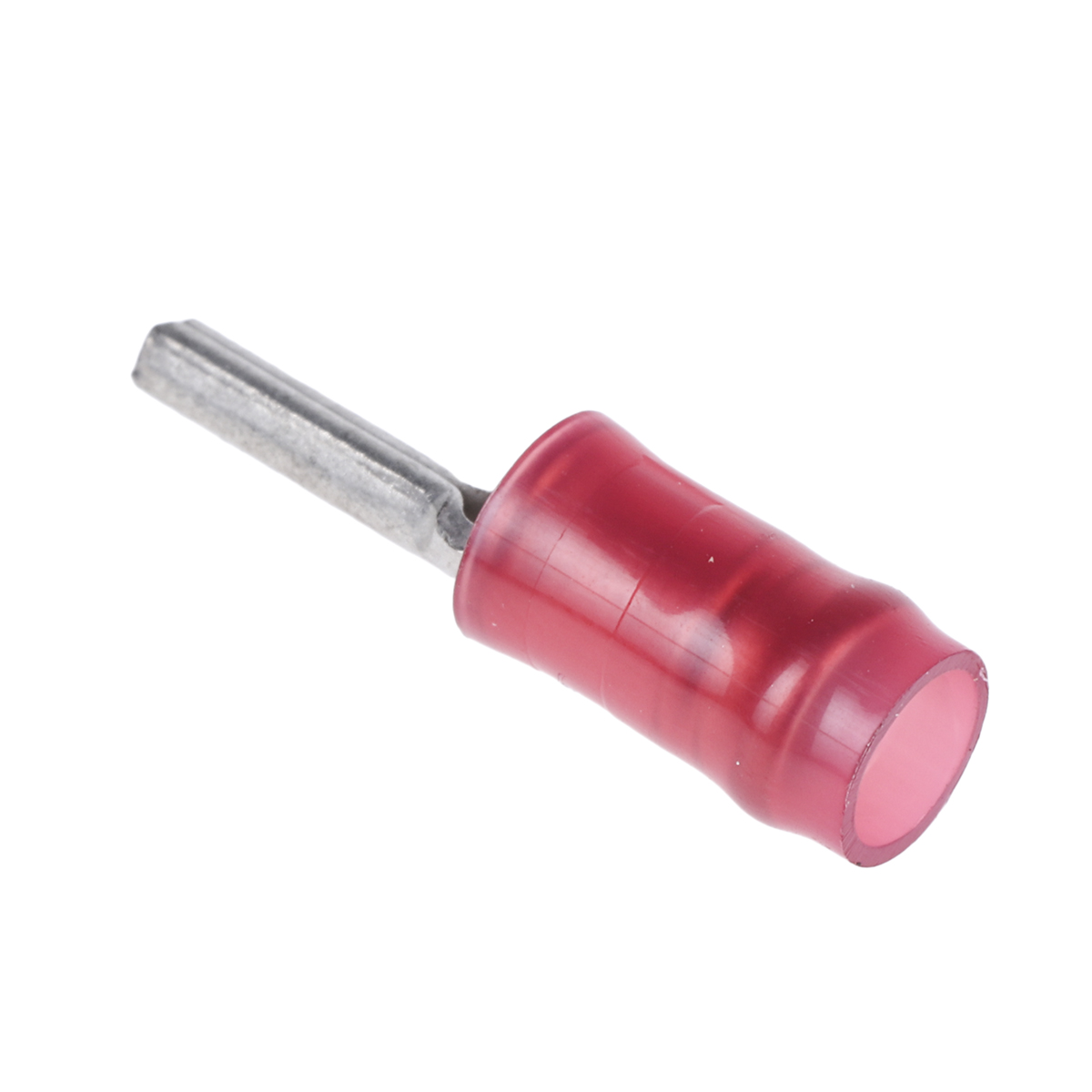

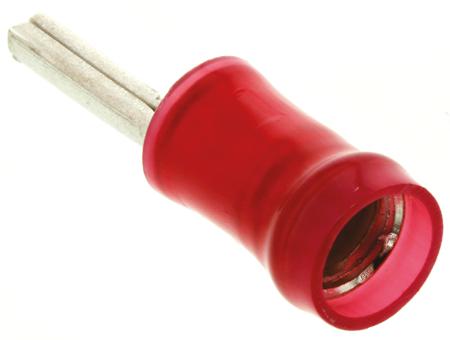

165142 TE Connectivity , PIDG Series Insulated Tin Plated Crimp Pin Connector, 0.25mm² to 1.6mm², 22AWG to 16AWG

(0)

Product Information

Shrouded/Unshrouded:

Unshrouded

Maximum Wire Size mm²:

1.6mm²

Pin Length:

6.7mm

Series:

PIDG

Colour:

Grey

Minimum Wire Size AWG:

22AWG

Contact Plating:

Tin

Insulation Material:

Nylon

Overall Length:

20.2mm

Insulation:

Insulated

Pin Diameter:

1.8mm

Minimum Wire Size mm²:

0.25mm²

Checking for live stock

The TE Connectivity 165142 is a high-quality, tin-plated, insulated terminal designed for use with wire sizes from 0.25mm² to 1.6mm² (22AWG to 16AWG). Engineered for durability and consistent electrical performance, this connector ensures strong, vibration-resistant terminations in demanding environments. It offers a secure connection with long-lasting protection against mechanical and environmental stresses. The TE 165142 ensures dependable wire termination, reducing the risk of failure in critical circuits and improving overall electrical integrity.

Primary Function of TE Connectivity 165142, PIDG Series, Insulated Tin Plated Crimp Pin Connector

The wire is inserted into the pre-insulated barrel and crimped using the correct tooling, forming a tight mechanical and electrical bond between the conductor and connector.

Standout Features of the Product

Pre-insulated PIDG design for added protection.
Tin-plated for corrosion resistance.
Colour-coded insulation for easy identification.
High vibration and mechanical stress resistance.

Unmatched Benefits of Choosing the TE Connectivity 165142, PIDG Series Insulated Tin Plated Crimp Pin Connector

Delivers secure, long-lasting terminations.
Minimises installation errors.
Withstands harsh environmental conditions.
Ensures consistent electrical performance.

Broad Range Applications

Industrial machinery and automation
Automotive wiring systems
Control panels and enclosures
Electrical maintenance and repair
Marine and aerospace systems

Datasheet(Technical Reference)
