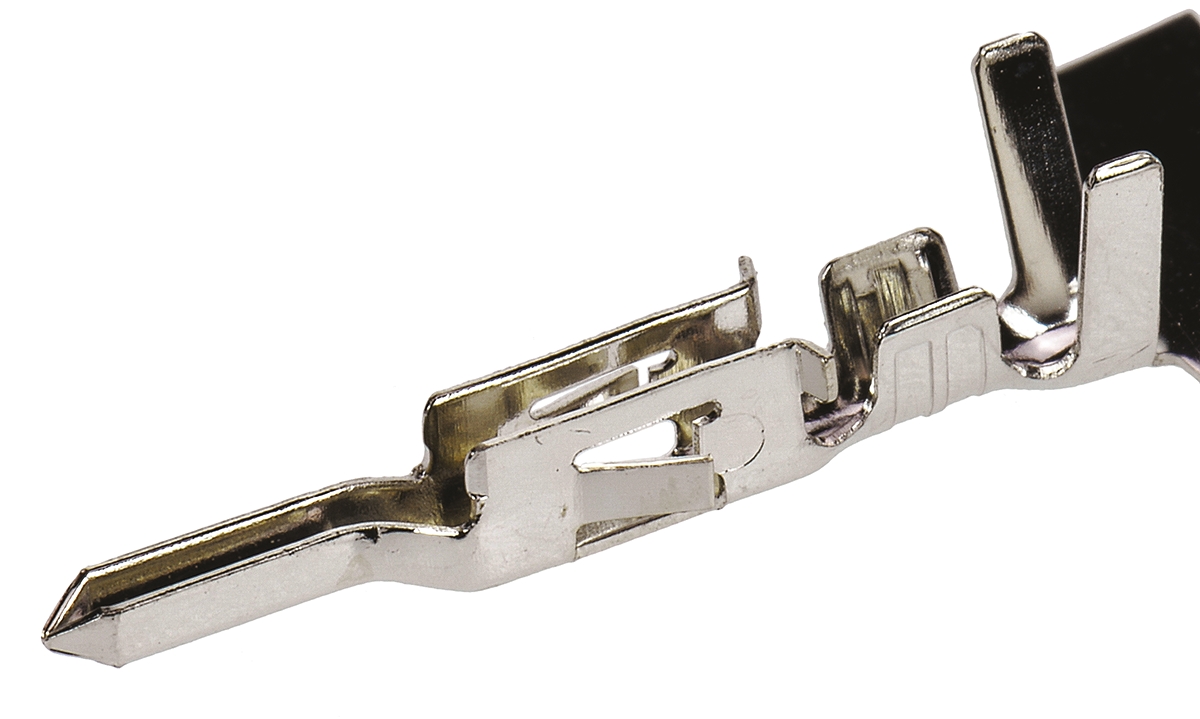

Molex MINI-FIT 5558 Crimp Terminal Contact, Male, 0.2mm² to 0.8mm², 24AWG to 18AWG, Tin Plating

39-00-0120 Molex MINI-FIT 5558 Crimp Terminal Contact, Male, 0.2mm² to 0.8mm², 24AWG to 18AWG, Tin Plating
39-00-0120
Molex

Product Information

Minimum Wire Size mm²:
0.2mm²
Maximum Wire Size mm²:
0.8mm²
Maximum Current:
9A
Maximum Contact Resistance:
10mΩ
Gender:
Male
Termination Method:
Crimp
Minimum Wire Size AWG:
24AWG
Contact Plating:
Tin
Series:
Mini-Fit
For Use With:
Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Maximum Wire Size AWG:
18AWG
Contact Material:
Brass
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-40°C
Series Number:
5558
RoHs Compliant
Checking for live stock

This is MINI-FIT 5558 Crimp Terminal Contact Male 0.2mm² to 0.8mm² 24AWG to 18AWG Tin Plating manufactured by Molex. The manufacturer part number is 39-00-0120. On the other hand, the wire has 0.2mm² of minimum size. The wire has a maximum size of 0.8mm². It also carries 9a maximum current. Additionally, it has a maximum 10mω contact resistance . In addition, male is the available "Gender" of the product. It allows crimp termination method. While the minimum wire size AWG includes 24awg. The high-quality tin is used as contact plating material. The product mini-fit, is a highly preferred choice for users. The product is highly suitable for mini-fit jr, mini-fit tpa and mini-fit bmi connector housings. Its maximum wires size includes 18awg. The product is made from sturdy brass materials. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -40°c. It carries [Serial Number] serial number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Product Specification Sheet - Mini-Fit BMI Connector System(Technical Reference)
pdf icon
Application Sheet - Mini-Fit JR. Dual-Wire Termination(Technical Reference)
pdf icon
Line Drawing - 39-00-0120(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 39-00-0120 on website for other similar products.
We accept all major payment methods for all products including ET14010130. Please check your shopping cart at the time of order.
You can order Molex brand products with 39-00-0120 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Crimp Contacts category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex MINI-FIT 5558 Crimp Terminal Contact, Male, 0.2mm² to 0.8mm², 24AWG to 18AWG, Tin Plating. You can also check on our website or by contacting our customer support team for further order details on Molex MINI-FIT 5558 Crimp Terminal Contact, Male, 0.2mm² to 0.8mm², 24AWG to 18AWG, Tin Plating.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14010130 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14010130.
Yes. We ship 39-00-0120 Internationally to many countries around the world.
