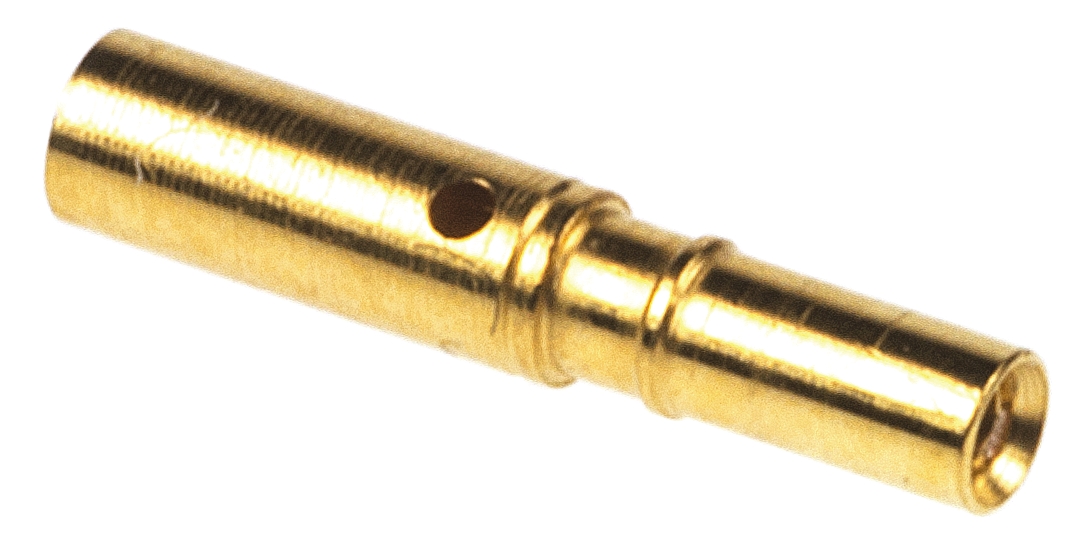

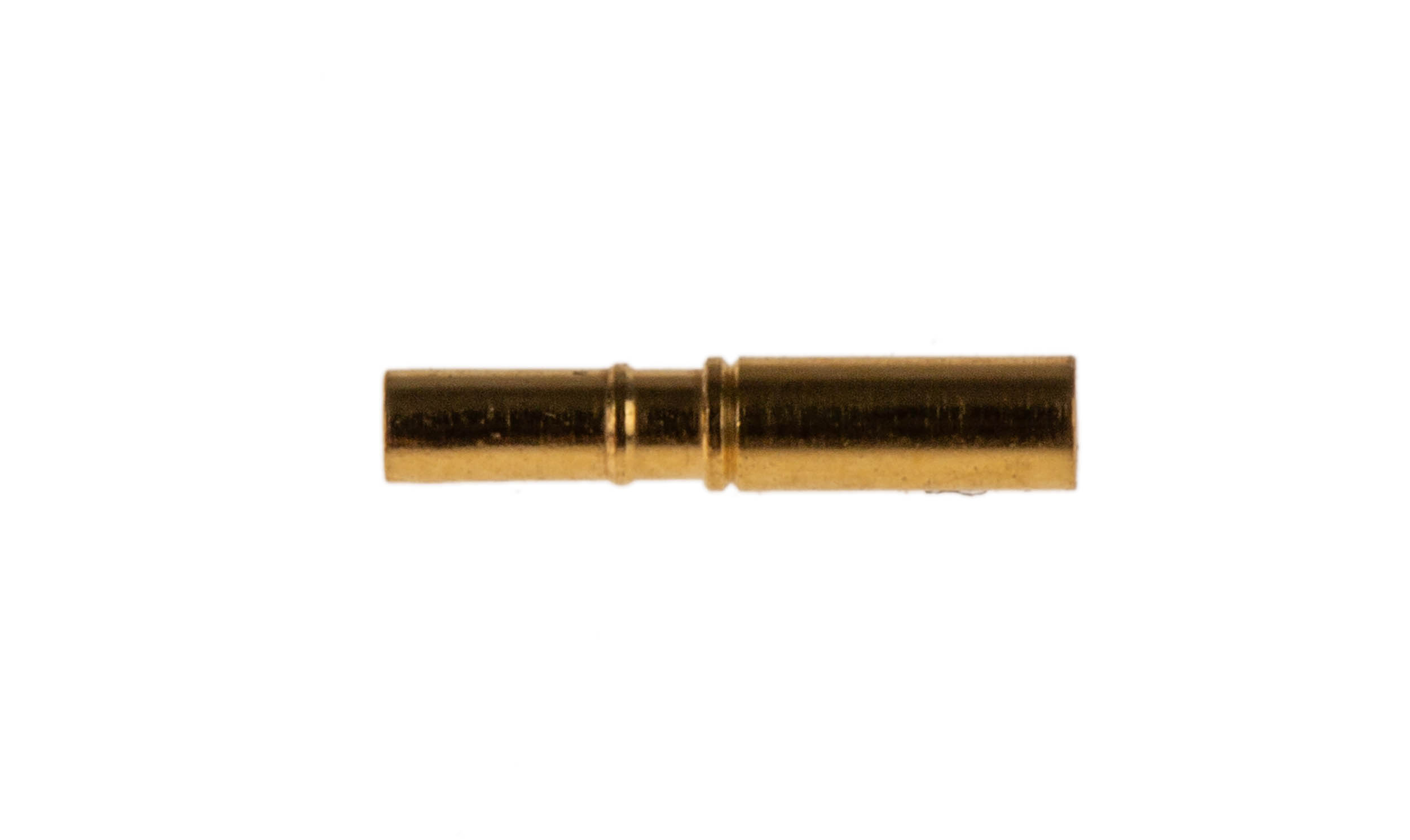

HARWIN M80-0130005, Datamate Crimp Terminal Contact, Female, 28AWG to 24AWG, Gold Plating

Enrgtech Part No: ET13934877
|
Manufacturer Part No:
M80-0130005
|
Manufacturer: HARWIN

M80-0130005 HARWIN , Datamate Crimp Terminal Contact, Female, 28AWG to 24AWG, Gold Plating

Product Information

Maximum Wire Size mm²:

0.2mm²

Maximum Current:

Maximum Contact Resistance:

25mΩ

Gender:

Female

Termination Method:

Crimp

Minimum Wire Size AWG:

28AWG

Contact Plating:

Gold

Series:

Datamate

For Use With:

Datamate L-Tek, J-Tek and Mix-Tek Connector Housings

Maximum Wire Size AWG:

24AWG

Maximum Operating Temperature:

+125°C

Minimum Operating Temperature:

-55°C

Checking for live stock

The HARWIN M80-0130005 is a technical component in the realm of electrical connectors belonging to the Datamate series. Designed for high-reliability applications, this female crimp terminal contact is meticulously engineered to offer consistent performance in challenging environments. Its gold-plated design not only adds to its longevity but also ensures optimal electrical performance.

The HARWIN M80-0130005, Datamate Crimp Terminal Contact, Female, 28AWG to 24AWG, Gold Plating: Core Characteristics and Advantages

Gold plating enhances electrical conductivity, ensuring efficient signal transmission.
The gold layer acts as a barrier against environmental factors that can lead to corrosion.
Compatible with 28AWG to 24AWG wires, it offers flexibility for various applications.
Robust construction ensures longevity even in demanding conditions.
Designed for a snug fit, ensuring a secure and stable connection.

Unique Construction

The contact is made to accommodate wires ranging from 28AWG to 24AWG, providing versatility for different wiring requirements. The core material used in its construction ensures durability and resilience against physical stresses. Additionally, the contact is treated with gold plating, which is not just a mark of quality but also a functional feature that enhances conductivity and resistance to corrosion.

Application Flexibility of the Crimp Terminal Contact

The HARWIN M80-0130005 finds its use in a variety of applications, especially where reliability and precision are paramount. Some typical applications include:

Aerospace Systems: For connections in aircraft and spacecraft where failure is not an option.
Military Equipment: Utilised in defence systems where robustness and reliability are critical.
Medical Devices: Ideal for sensitive medical equipment requiring precise and reliable connections.
Telecommunication: In devices where maintaining signal integrity is essential.
Industrial Automation: For machinery and equipment in industrial settings where consistent performance is necessary.

Datasheet(Technical Reference)

Datamate Data Sheet(Technical Reference)

Drawing(Technical Reference)

Crimp Socket Contact Assembly Drawing(Technical Reference)
