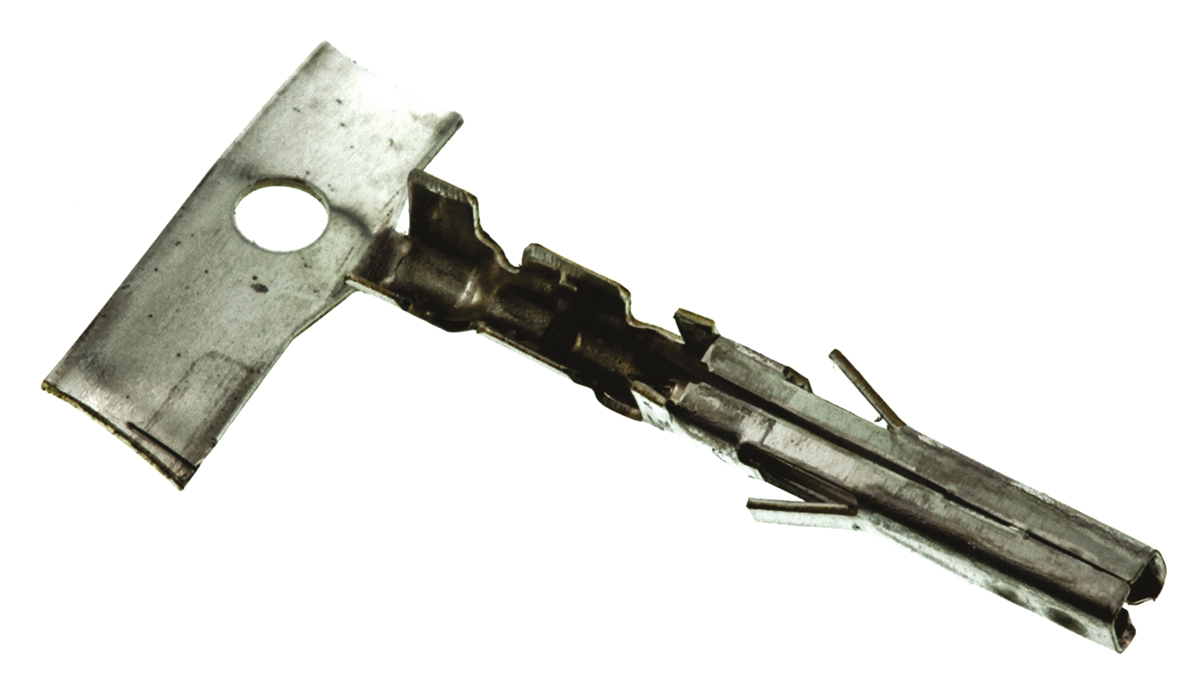

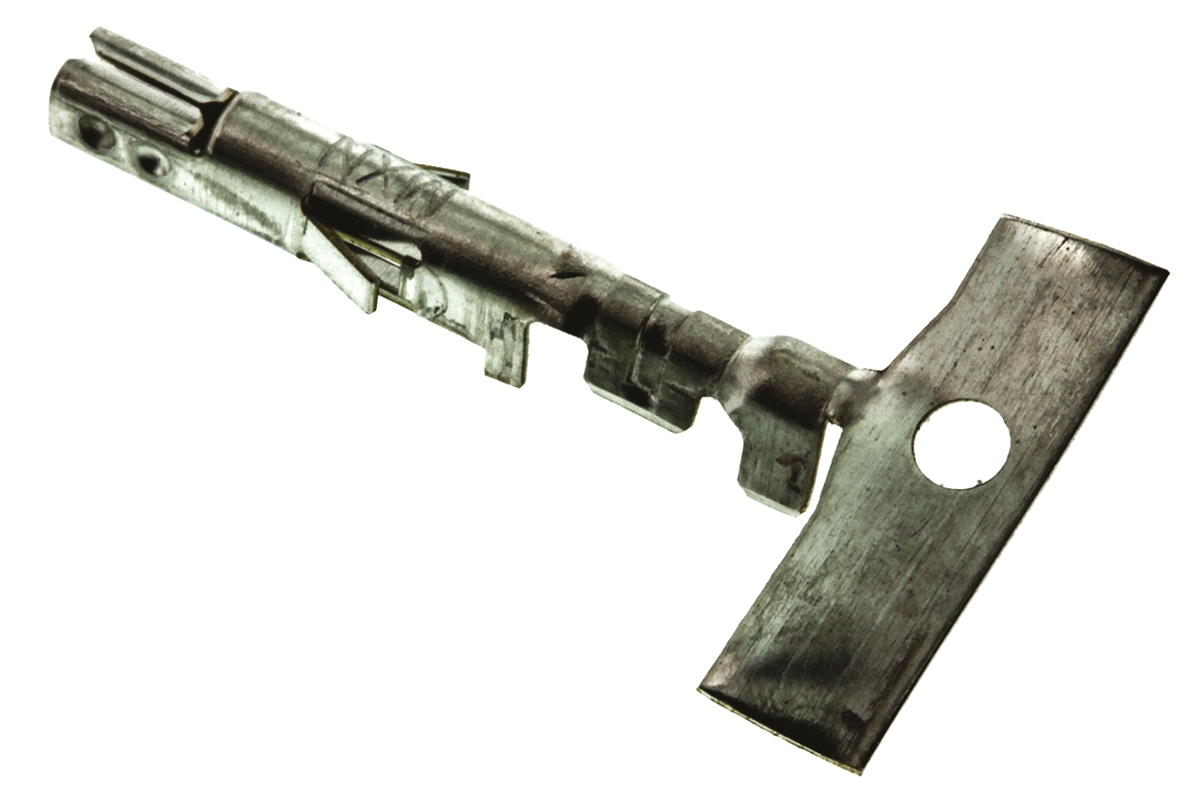

Molex MINI-FIT 5556 Crimp Terminal Contact, Female, 0.08mm² to 0.35mm², 28AWG to 22AWG, Tin Plating

39-00-0046 Molex MINI-FIT 5556 Crimp Terminal Contact, Female, 0.08mm² to 0.35mm², 28AWG to 22AWG, Tin Plating
39-00-0046
39-00-0046
Molex

Product Information

Minimum Wire Size mm²:
0.08mm²
Maximum Wire Size mm²:
0.35mm²
Maximum Current:
9A
Maximum Contact Resistance:
10mΩ
Gender:
Female
Termination Method:
Crimp
Minimum Wire Size AWG:
28AWG
Contact Plating:
Tin
Series:
Mini-Fit
For Use With:
Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Maximum Wire Size AWG:
22AWG
Contact Material:
Brass
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-40°C
Series Number:
5556
RoHs Compliant
Checking for live stock

This is MINI-FIT 5556 Crimp Terminal Contact Female 0.08mm² to 0.35mm² 28AWG to 22AWG Tin Plating manufactured by Molex. The manufacturer part number is 39-00-0046. On the other hand, the wire has 0.08mm² of minimum size. The wire has a maximum size of 0.35mm². It also carries 9a maximum current. Additionally, it has a maximum 10mω contact resistance . In addition, female is the available "Gender" of the product. It allows crimp termination method. While the minimum wire size AWG includes 28awg. The high-quality tin is used as contact plating material. The product mini-fit, is a highly preferred choice for users. The product is highly suitable for mini-fit jr, mini-fit tpa and mini-fit bmi connector housings. Its maximum wires size includes 22awg. The product is made from sturdy brass materials. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -40°c. It carries [Serial Number] serial number.

pdf icon
Application Sheet - MINI-FIT JR Dual Wire Termination(Technical Reference)
pdf icon
FiT Families(Technical Reference)
pdf icon
Product Specification(Technical Reference)
pdf icon
39-00-0046 - Line Drawing(Technical Reference)
pdf icon
Datasheet(Technical Reference)
pdf icon
Product Reference Guide(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 39-00-0046 on website for other similar products.
We accept all major payment methods for all products including ET13914057. Please check your shopping cart at the time of order.
You can order Molex brand products with 39-00-0046 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Crimp Contacts category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex MINI-FIT 5556 Crimp Terminal Contact, Female, 0.08mm² to 0.35mm², 28AWG to 22AWG, Tin Plating. You can also check on our website or by contacting our customer support team for further order details on Molex MINI-FIT 5556 Crimp Terminal Contact, Female, 0.08mm² to 0.35mm², 28AWG to 22AWG, Tin Plating.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13914057 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13914057.
Yes. We ship 39-00-0046 Internationally to many countries around the world.
