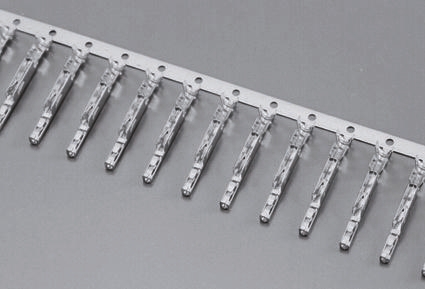

JAE IL-AG5 Crimp Terminal, Female, Tin Plating

IL-AG5-C1-5000 JAE IL-AG5 Crimp Terminal, Female, Tin Plating
JAE

Product Information

Series:
IL-AG5
Maximum Wire Size mm²:
0.85mm²
Maximum Contact Resistance:
10mΩ
Gender:
Female
Minimum Wire Size AWG:
22AWG
Contact Plating:
Tin
Termination Method:
Crimp
For Use With:
IL-AG5 Connector Housing
Maximum Wire Size AWG:
18AWG
Minimum Wire Size mm²:
0.3mm²
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40°C
Contact Material:
Phosphor Bronze
Checking for live stock

This is IL-AG5 Crimp Terminal Female Tin Plating manufactured by JAE. The manufacturer part number is IL-AG5-C1-5000. The product il-ag5, is a highly preferred choice for users. The wire has a maximum size of 0.85mm². Additionally, it has a maximum 10mω contact resistance . In addition, female is the available "Gender" of the product. While the minimum wire size AWG includes 22awg. The high-quality tin is used as contact plating material. It allows crimp termination method. The product is highly suitable for il-ag5 connector housing. Its maximum wires size includes 18awg. On the other hand, the wire has 0.3mm² of minimum size. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy phosphor bronze materials.

pdf icon
Technical Drawing(Technical Reference)
