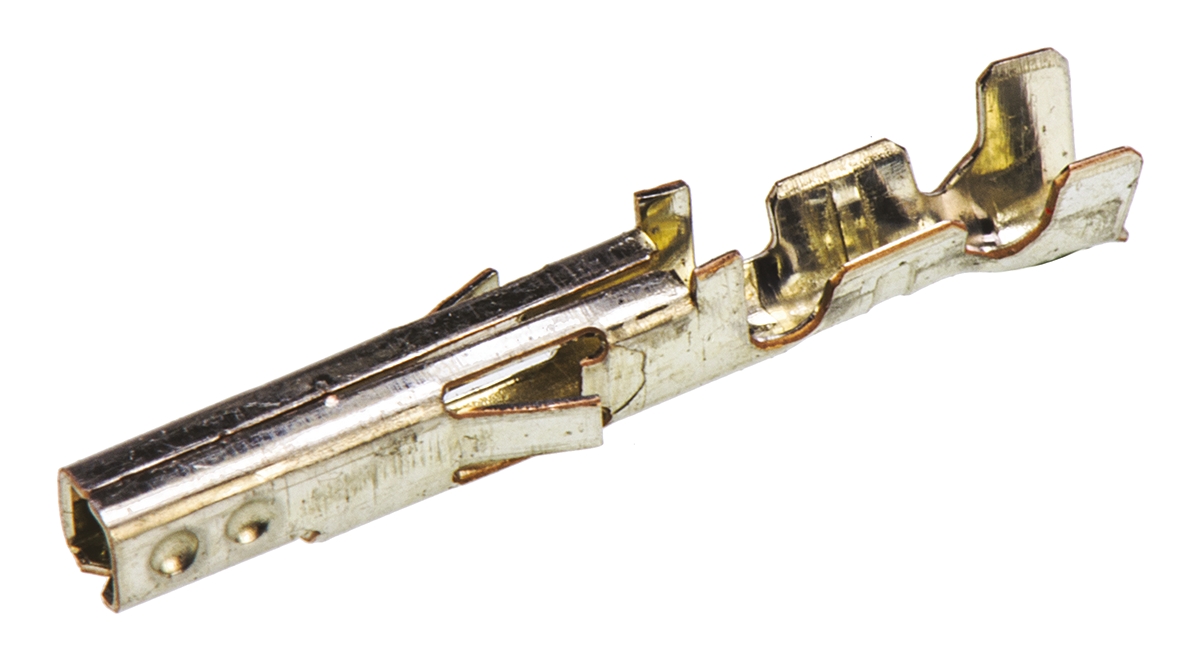

Molex MINI-FIT, 5556 Series Number Crimp Terminal, Female, 28AWG to 22AWG, Tin Plating

Enrgtech Part No: ET13846623
|
Manufacturer Part No:
39-00-0066
|
Manufacturer: Molex

39-00-0066 Molex MINI-FIT, 5556 Series Number Crimp Terminal, Female, 28AWG to 22AWG, Tin Plating

Product Information

Minimum Wire Size mm²:

0.08mm²

Maximum Wire Size mm²:

0.35mm²

Maximum Contact Resistance:

60mΩ

Gender:

Female

Termination Method:

Crimp

Minimum Wire Size AWG:

28AWG

Contact Plating:

Tin

Series:

Mini-Fit

For Use With:

Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings

Maximum Wire Size AWG:

22AWG

Contact Material:

Phosphor Bronze

Maximum Operating Temperature:

+85°C

Checking for live stock

This is MINI-FIT 5556 Series Number Crimp Terminal Female 28AWG to 22AWG Tin Plating manufactured by Molex. The manufacturer part number is 39-00-0066. On the other hand, the wire has 0.08mm² of minimum size. The wire has a maximum size of 0.35mm². Additionally, it has a maximum 60mω contact resistance . In addition, female is the available "Gender" of the product. It allows crimp termination method. While the minimum wire size AWG includes 28awg. The high-quality tin is used as contact plating material. The product mini-fit, is a highly preferred choice for users. The product is highly suitable for mini-fit jr, mini-fit tpa and mini-fit bmi connector housings. Its maximum wires size includes 22awg. The product is made from sturdy phosphor bronze materials. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -40°c. It carries [Serial Number] serial number.
