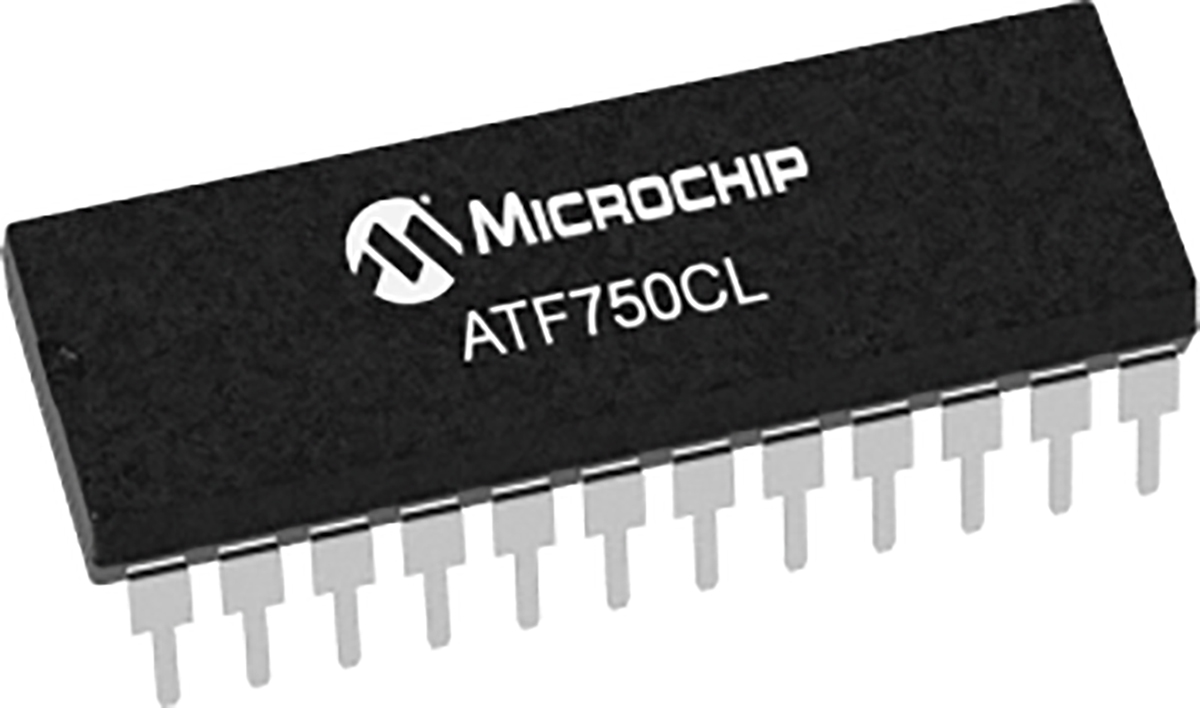

Microchip Technology ATF750CL-15PU, CPLD ATF750CL EEPROM 10 Cells, 22 I/O, 15ns, ISP, 24-Pin PDIP

ATF750CL-15PU Microchip Technology , CPLD ATF750CL EEPROM 10 Cells, 22 I/O, 15ns, ISP, 24-Pin PDIP
Microchip

Product Information

Dimensions:
32.13 x 7.11 x 4.95mm
Mounting Type:
Surface Mount
Number of User I/Os:
22
Maximum Operating Temperature:
+85 °C
Family Name:
ATF750CL
Minimum Operating Supply Voltage:
4.5 V
Propagation Delay Test Condition:
50pF
Propagation Delay:
15ns
Height:
4.95mm
Memory Type:
EEPROM
Width:
7.11mm
Length:
32.13mm
Package Type:
PDIP
Re-programmability Support:
Yes
Minimum Operating Temperature:
-40 °C
Individual Output Enable Control:
Yes
Maximum Operating Supply Voltage:
5.5 V
Number of Macro Cells:
10
Pin Count:
24
In System Programmability:
In System
RoHs Compliant
Checking for live stock

This is Technology CPLD ATF750CL EEPROM 10 Cells 22 I/O 15ns ISP 24-Pin PDIP manufactured by Microchip. The manufacturer part number is ATF750CL-15PU. The given dimensions of the product include 32.13 x 7.11 x 4.95mm. The product is available in surface mount configuration. It has about 22 number of user I/Os . It has a maximum operating temperature of +85 °c. The product belongs to a family atf750cl. While its minimum operating supply voltage is 4.5 v. Features 50pf of propagation delay test condition. Has a corresponding 15ns propagation delay. In addition, the height is 4.95mm. It is a type of eeprom memory type. Furthermore, the product is 7.11mm wide. Its accurate length is 32.13mm. The package is a sort of pdip. It supports re-programmability yes . Whereas, the minimum operating temperature of the product is -40 °c. It includes an individual output enable control yes . It has 5.5 v maximum operating supply voltage. It has approximately 10 macro cells . It contains 24 pins. It has in system programmability .
