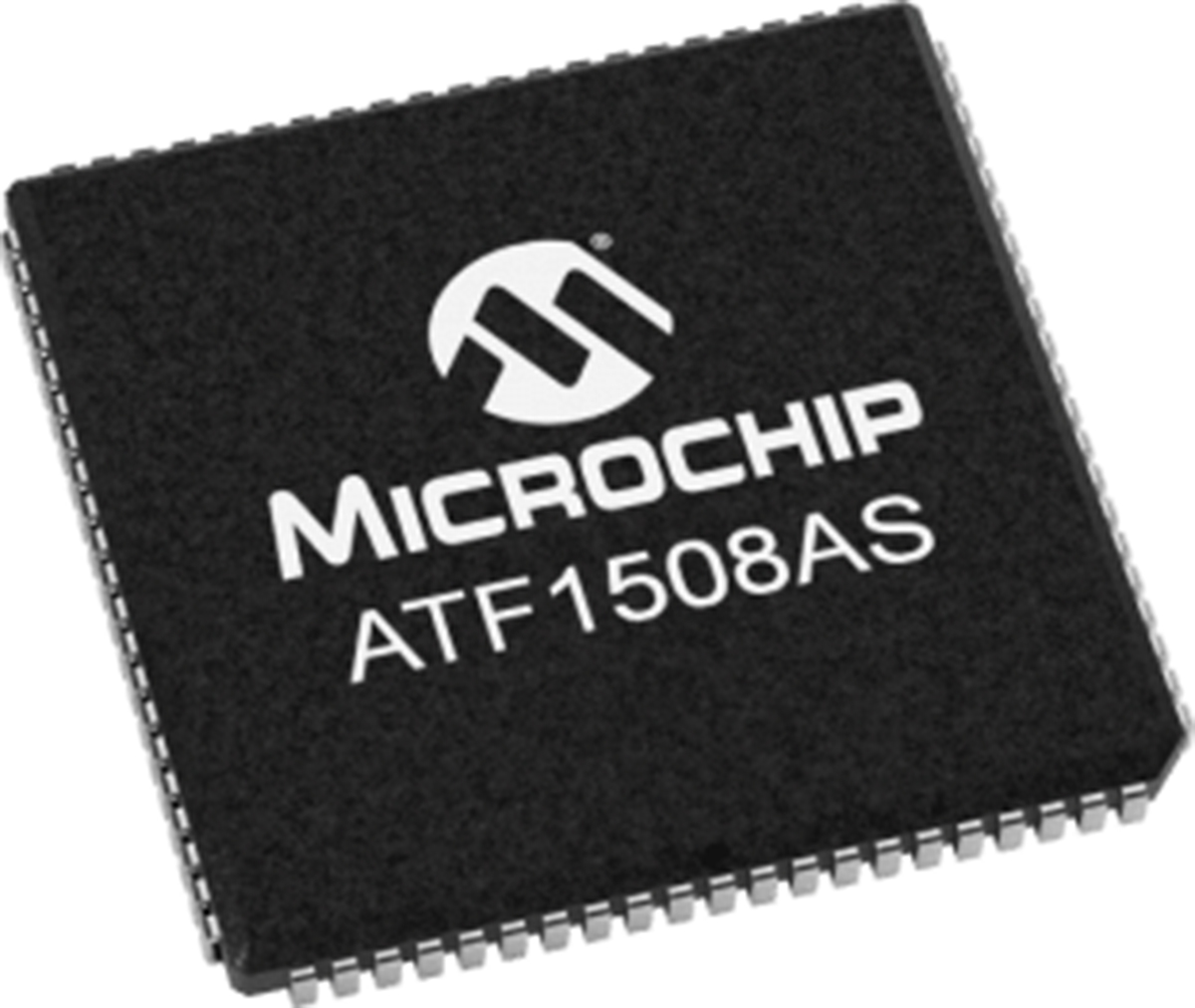

Microchip ATF1508AS-10JU84, CPLD ATF1508AS EEPROM 128 Cells, 84 I/O, 128 Labs, 10ns, ISP, 84-Pin PLCC

ATF1508AS-10JU84 Microchip , CPLD ATF1508AS EEPROM 128 Cells, 84 I/O, 128 Labs, 10ns, ISP, 84-Pin PLCC
Microchip

Product Information

Number of Logic Blocks/Elements:
128
Dimensions:
29.41 x 29.41 x 4.06mm
Propagation Delay:
10ns
Width:
29.41mm
In System Programmability:
In System
Minimum Operating Supply Voltage:
4.5 V
Package Type:
PLCC
Maximum Operating Temperature:
+85 °C
Individual Output Enable Control:
Yes
Family Name:
ATF1508AS
Length:
29.41mm
Re-programmability Support:
Yes
Pin Count:
84
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Number of User I/Os:
84
Number of Macro Cells:
128
Height:
4.06mm
Memory Type:
EEPROM
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
35pF
RoHs Compliant
Checking for live stock

This is CPLD ATF1508AS EEPROM 128 Cells 84 I/O 128 Labs 10ns ISP 84-Pin PLCC manufactured by Microchip. The manufacturer part number is ATF1508AS-10JU84. It has 128 logic blocks/elements . The given dimensions of the product include 29.41 x 29.41 x 4.06mm. Has a corresponding 10ns propagation delay. Furthermore, the product is 29.41mm wide. It has in system programmability . While its minimum operating supply voltage is 4.5 v. The package is a sort of plcc. It has a maximum operating temperature of +85 °c. It includes an individual output enable control yes . The product belongs to a family atf1508as. Its accurate length is 29.41mm. It supports re-programmability yes . It contains 84 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. It has about 84 number of user I/Os . It has approximately 128 macro cells . In addition, the height is 4.06mm. It is a type of eeprom memory type. Whereas, the minimum operating temperature of the product is -40 °c. Features 35pf of propagation delay test condition.
