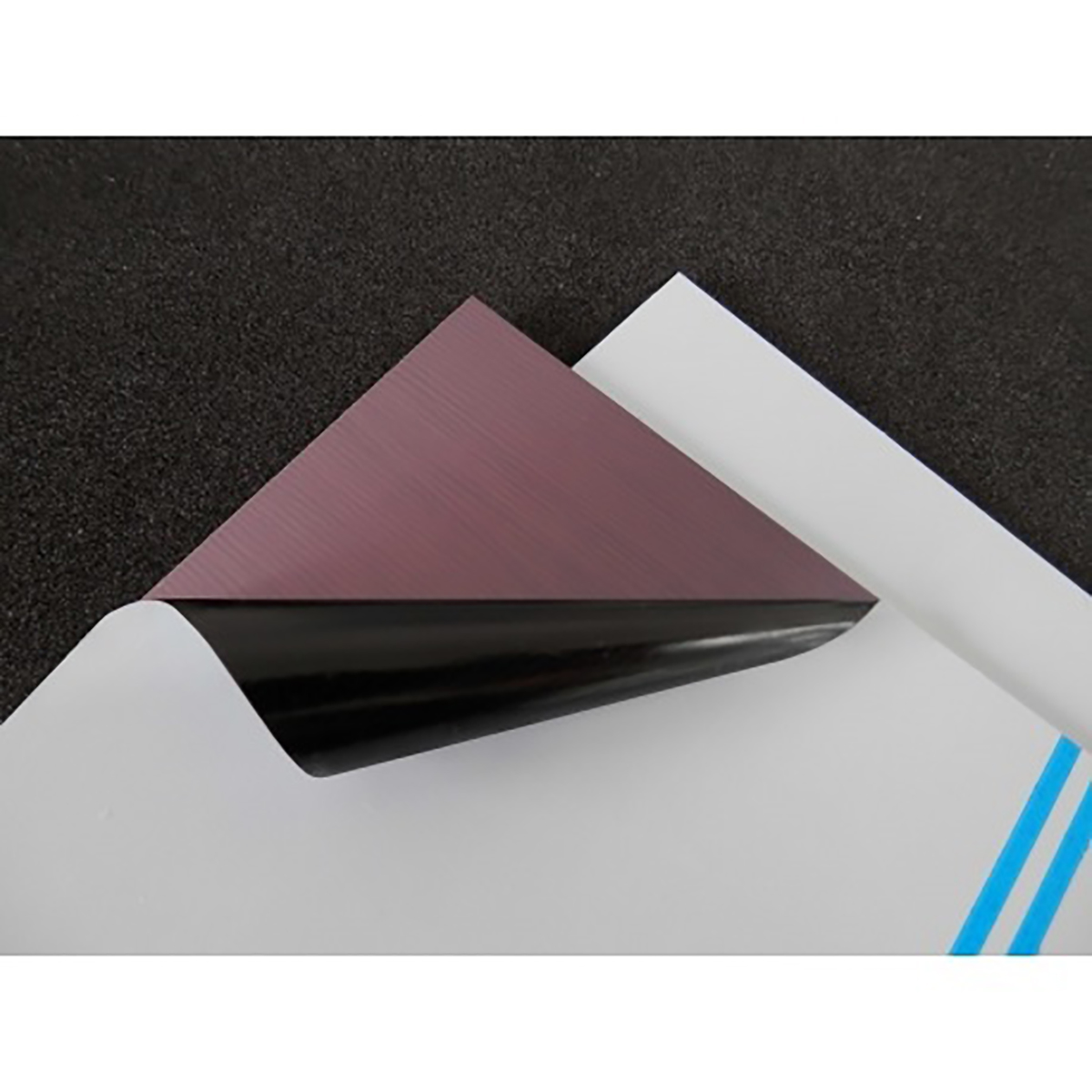

AA716, Single Sided Photoresist Board FR4 70μm Copper Thick, 160 x 100 x 1.6mm

Enrgtech Part No: ET13980076
|
Manufacturer Part No:
AA716
|
Manufacturer: CIF

AA716 , Single Sided Photoresist Board FR4 70μm Copper Thick, 160 x 100 x 1.6mm

Product Information

Board Type:

Photoresist Board

FR Material Grade:

FR4

Copper Thickness:

70µm

Dimensions:

100 x 160 x 1.6mm

Base Material:

Epoxy Glass Fabric Laminate

Width:

1.6mm

Length:

160mm

Thickness:

100mm

Number of Sides:

Checking for live stock

The CIF AA716 is a professional-grade single-sided photoresist board designed for precise PCB prototyping. It features a high-quality FR4 epoxy glass fabric laminate base for superior mechanical strength. The surface is coated with a 70µm thick copper layer to support demanding electrical circuits. Its pre-sensitised coating ensures accurate image transfer during the etching process. This board is an essential component for engineers creating reliable custom circuit layouts.

Main Reasons to Use This Product

The thick copper layer on the CIF AA716 photoresist board reliably supports high-current applications. Its FR4 base offers excellent insulation and heat resistance.

Pre-sensitised surface for fast prototyping.
Durable epoxy glass fabric construction.

Special Features & Technical Specifications

Board Type: Photoresist Board
FR Material Grade: FR4
Copper Thickness: 70µm
Dimensions: 160 x 100 x 1.6mm
Base Material: Epoxy Glass Fabric Laminate
Number of Sides: 1
Manufacturer: CIF.

Printed Circuit Board General Information(Technical Reference)

Presensitised Board Instructions For Use(Technical Reference)

FR4 Data Sheet(Technical Reference)

UL File E101749(Technical Reference)
