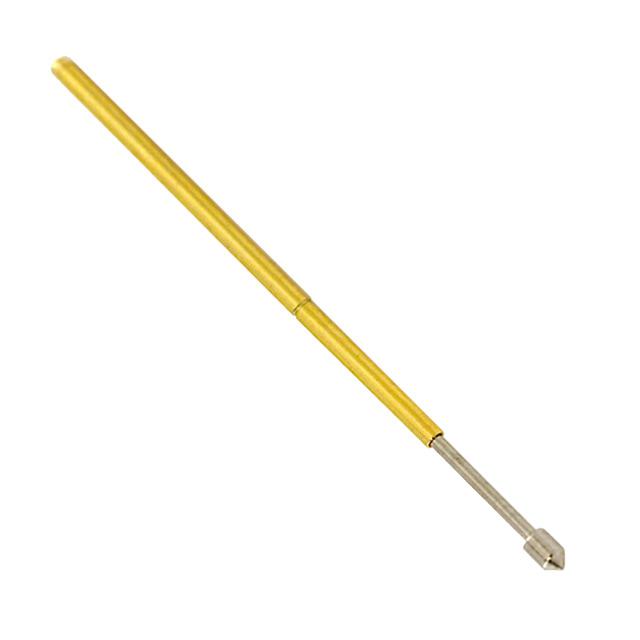

SparkFun Electronics PRT-09174

PRT-09174 SparkFun Electronics
SparkFun Electronics

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Recommended Working Height:
-
Contact Finish Thickness:
-
standardLeadTime:
6 Weeks
Operating Force - Initial:
-
Material Flammability Rating:
-
Package:
-
Minimum Working Height:
1.063" (27.00mm)
Maximum Working Height:
1.311" (33.30mm)
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Sleeve & Plunger (Pogo Pins)
Pad Layout Dimension:
Circular - 0.040" (1.01mm) (TH)
Mating Cycles:
-
Current Rating (Amps):
-
Operating Force - Mid Compression:
-
Features:
Conical Tip
Mounting Type:
Through Hole
Series:
-
Plunger Size:
-
ECCN:
EAR99
Contact Material:
-
Checking for live stock

This is manufactured by SparkFun Electronics. The manufacturer part number is PRT-09174. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. It has a long 6 weeks standard lead time. While the minimum working height is 1.063" (27.00mm). It carries 1.311" (33.30mm) of maximum working height. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of sleeve & plunger (pogo pins). While the pad layout dimension includes circular - 0.040" (1.01mm) (th). The splendid features of the product include conical tip. The product is available in through hole configuration. The product is designated with the ear99 code number.

pdf icon
Conical Pogo Pin 09IV09 Dimensions(Datasheets)
