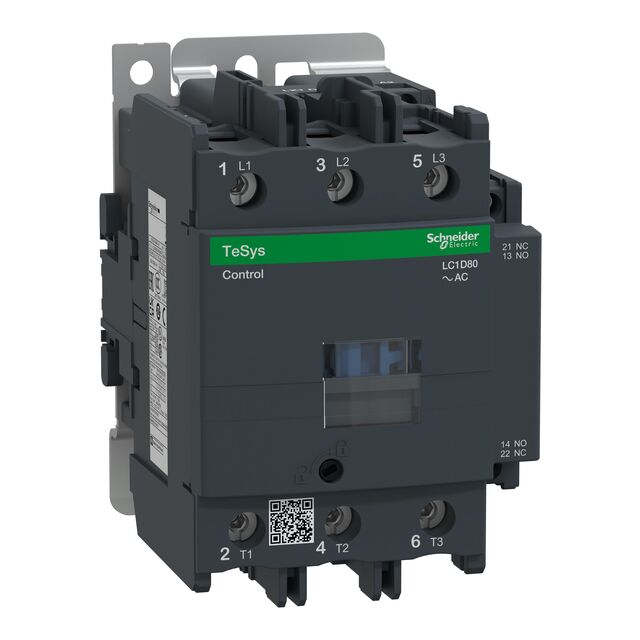

Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO

LC1D80N7 Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO
Schneider Electric

Product Information

Better World Verification:
Green Premium
Better World Product:
Yes
Minimum Operating Temperature:
-40°C
Contact Current Rating:
80 A
Series:
LC1D
Coil Voltage:
415 V ac
Length:
127mm
Pole and Throw Configuration:
3P
Mounting Style:
Plate
Width:
85mm
Depth:
130mm
Number Of Auxiliary Contacts:
2
Normal State Configuration:
3NO
Range:
TeSys D
Auxiliary Contact Configuration:
1NO + 1NC
Power Rating:
45 kW
Maximum Operating Temperature:
+60°C
Number of Poles:
3
Terminal Type:
Screw
Coil Voltage:
415VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:
LC1D80N7
Coil Power:
-
Must Operate Voltage:
352.75 VAC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
35 ms
Must Release Voltage:
124.5 VAC
standardLeadTime:
5 Weeks
Contact Rating (Current):
80 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC, 300VDC - Max
Release Time:
20 ms
Packaging:
Box
Contact Material:
-
Checking for live stock

This is Tesys D LC1D 3 Pole Contactor 3NO manufactured by Schneider Electric. The manufacturer part number is LC1D80N7. Better World Verification Options - green premium. Is it a better world product? yes. Whereas, the minimum operating temperature of the product is -40°c. The rated contact current is 80 a. The product lc1d, is a highly preferred choice for users. The coil voltage of the product is 415 v ac. Its accurate length is 127mm. It has 3p pole and throw configuration. The product is available in plate style. Furthermore, the product is 85mm wide. The product comes in 130mm depth. It is composed of [Number of Auxiliary Contacts] auxiliary contacts. The normal state configuration includes 3no. It features tesys d range. In addition, it has a standard 1no + 1nc auxiliary contact configuration . Feature 45 kw of power rating. It has a maximum operating temperature of +60°c. It has equipped with 3 poles. The terminal is a screw type. The coil voltage of the product is 415vac. Moreover, it has screw terminal terminal style. The product has -40°c ~ 70°c operating temperature range. On the other hand, 352.75 vac is the given crucial/must operating voltage. The schneider electric's product offers user-desired applications. It also has a 3pst-no (3 form a) contact form. The operating time of the product is 35 ms. While the must release voltage is a 124.5 vac. It has a long 5 weeks standard lead time. It has a contact current rating of 80 a. The splendid features of the product include auxiliary contacts. The product is available in chassis mount, din rail configuration. The product tesys, is a highly preferred choice for users. The product's switching voltage is 690vac, 300vdc - max. While 20 ms is its release time. In addition, box is the available packaging type of the product.

pdf icon
Datasheet(Technical Reference)
pdf icon
TeSys D Green Range Guide(Technical Reference)
pdf icon
Instruction Sheet - LC1D80N7(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
