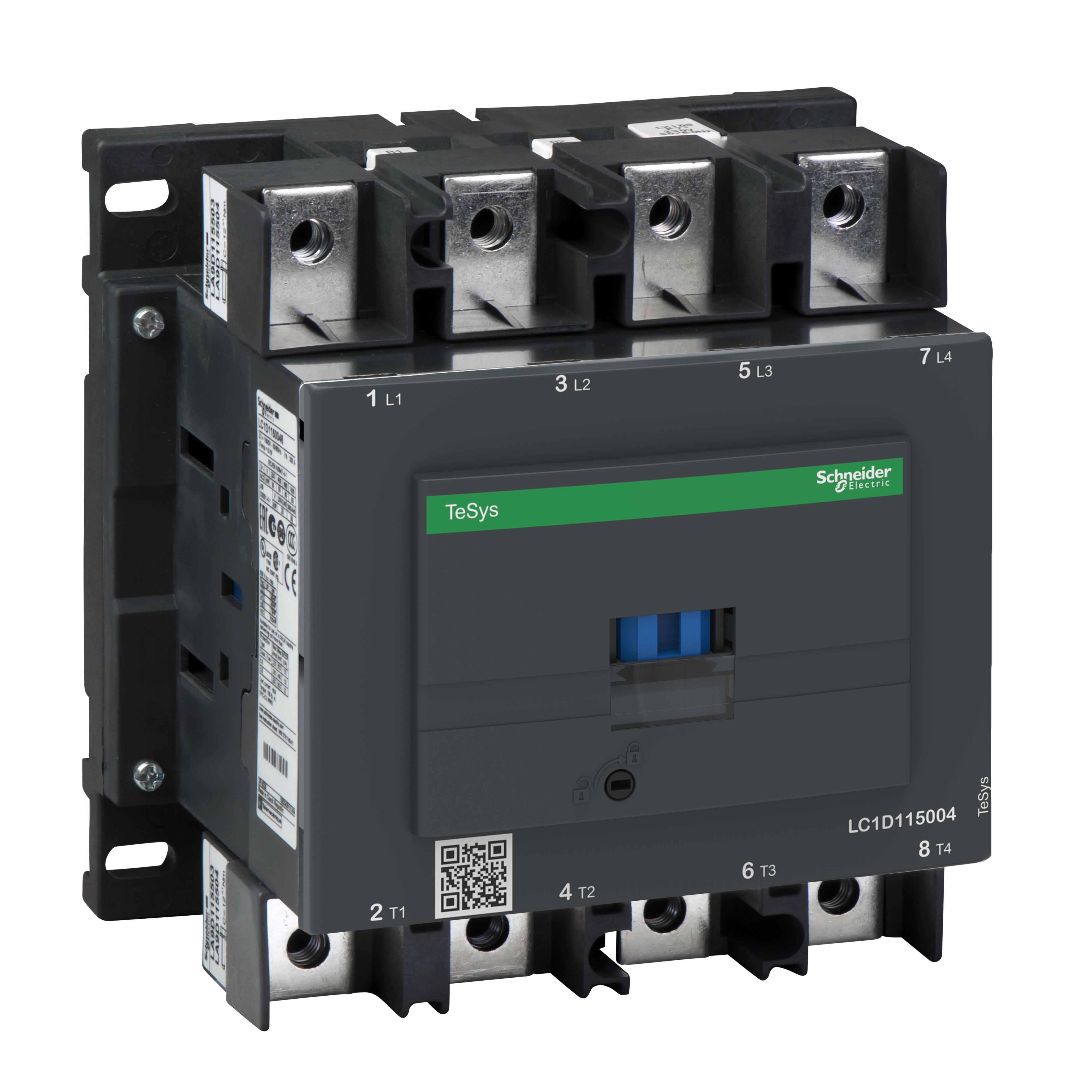

Schneider Electric Tesys D LC1D 4 Pole Contactor, 4NO, 115 A, 24 V dc Coil

LC1D1150046BD Schneider Electric Tesys D LC1D 4 Pole Contactor, 4NO, 115 A, 24 V dc Coil
LC1D1150046BD
LC1D1150046BD
ET13997189
Schneider Electric

Product Information

Better World Verification:
Green Premium
Better World Product:
Yes
Contact Current Rating:
115 A
Series:
LC1D
Coil Voltage:
24 V dc
Length:
158mm
Width:
155mm
Depth:
115mm
Normal State Configuration:
4NO
Range:
TeSys D
Contact Voltage Rating:
1 kV ac, 690 V dc
Number of Poles:
4
Terminal Type:
Lug Ring Terminal
Coil Voltage:
24VDC
Termination Style:
Box Lug
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
Switching Voltage:
1000VAC, 460VDC - Max
Coil Power:
-
Must Operate Voltage:
18 VDC
Manufacturer:
Schneider Electric
Contact Form:
4PST-NO (4 Form A)
Operate Time:
35 ms
Must Release Voltage:
3.6 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
200 A
Features:
Suppressor
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Release Time:
75 ms
Packaging:
Box
Contact Material:
-
RoHs Compliant
Checking for live stock

This is Tesys D LC1D 4 Pole Contactor 4NO 115 A 24 V dc Coil manufactured by Schneider Electric. The manufacturer part number is LC1D1150046BD. Better World Verification Options - green premium. Is it a better world product? yes. The rated contact current is 115 a. The product lc1d, is a highly preferred choice for users. The coil voltage of the product is 24 v dc. Its accurate length is 158mm. Furthermore, the product is 155mm wide. The product comes in 115mm depth. The normal state configuration includes 4no. It features tesys d range. The integrated contact has 1 kv ac, 690 v dc of voltage rating. It has equipped with 4 poles. The terminal is a lug ring terminal type. The coil voltage of the product is 24vdc. Moreover, it has box lug terminal style. The product has -40°c ~ 70°c operating temperature range. The product's switching voltage is 1000vac, 460vdc - max. On the other hand, 18 vdc is the given crucial/must operating voltage. The schneider electric's product offers user-desired applications. It also has a 4pst-no (4 form a) contact form. The operating time of the product is 35 ms. While the must release voltage is a 3.6 vdc. It has a long 5 weeks standard lead time. It has a contact current rating of 200 a. The splendid features of the product include suppressor. The product is available in chassis mount, din rail configuration. The product tesys, is a highly preferred choice for users. While 75 ms is its release time. In addition, box is the available packaging type of the product.

pdf icon
Green Premium - Product Environmental Profile(Technical Reference)
pdf icon
Datasheet - LC1D1150046BD(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Catalog 2024(Technical Reference)
