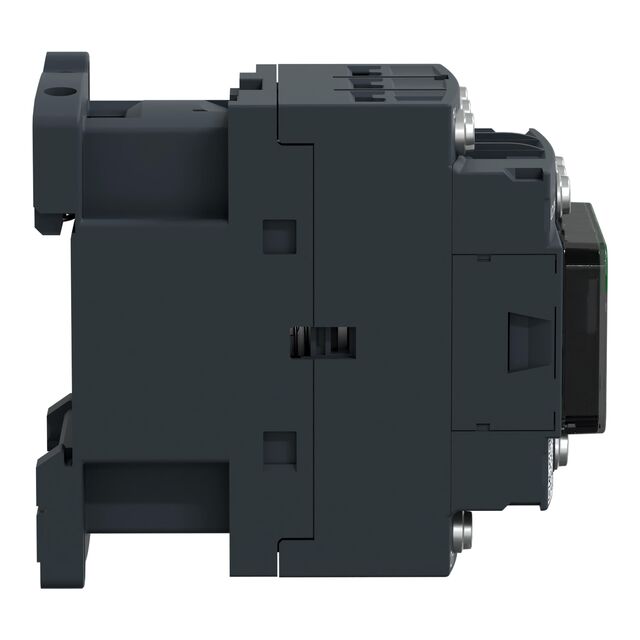

Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 25 A, 7.5 kW, 24 V dc Coil

LC1D126BL Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 25 A, 7.5 kW, 24 V dc Coil
LC1D126BL
LC1D126BL
Schneider Electric

Product Information

Better World Verification:
Green Premium
Better World Product:
Yes
Maximum Operating Temperature:
+60°C
Contact Current Rating:
25 A
Series:
LC1D
Minimum Operating Temperature:
-5°C
Coil Voltage:
24 V dc
Length:
77mm
Width:
45mm
Depth:
95mm
Normal State Configuration:
3NO
Range:
TeSys D
Power Rating:
7.5 kW
Contact Voltage Rating:
300 V dc, 690 V ac
Number of Poles:
3
Terminal Type:
Lug Ring Terminal
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:
LC1D126BL
Coil Power:
-
Must Operate Voltage:
19.2 VDC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
1.5 ms
Must Release Voltage:
2.4 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
12 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC, 300VDC - Max
Release Time:
1.5 ms
Packaging:
Box
Contact Material:
-
RoHs Compliant
Checking for live stock

This is Tesys D LC1D 3 Pole Contactor 3NO 25 A 7.5 kW 24 V dc Coil manufactured by Schneider Electric. The manufacturer part number is LC1D126BL. Better World Verification Options - green premium. Is it a better world product? yes. It has a maximum operating temperature of +60°c. The rated contact current is 25 a. The product lc1d, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -5°c. The coil voltage of the product is 24 v dc. Its accurate length is 77mm. Furthermore, the product is 45mm wide. The product comes in 95mm depth. The normal state configuration includes 3no. It features tesys d range. Feature 7.5 kw of power rating. The integrated contact has 300 v dc, 690 v ac of voltage rating. It has equipped with 3 poles. The terminal is a lug ring terminal type. The coil voltage of the product is 24vdc. Moreover, it has screw terminal terminal style. The product has -40°c ~ 70°c operating temperature range. On the other hand, 19.2 vdc is the given crucial/must operating voltage. The schneider electric's product offers user-desired applications. It also has a 3pst-no (3 form a) contact form. The operating time of the product is 1.5 ms. While the must release voltage is a 2.4 vdc. It has a long 5 weeks standard lead time. It has a contact current rating of 12 a. The splendid features of the product include auxiliary contacts. The product is available in chassis mount, din rail configuration. The product tesys, is a highly preferred choice for users. The product's switching voltage is 690vac, 300vdc - max. While 1.5 ms is its release time. In addition, box is the available packaging type of the product.

pdf icon
Catalogue - Motor Starters(Technical Reference)
pdf icon
LC1D126BL Datasheet(Technical Reference)
pdf icon
Green Premium - Product Environmental Profile(Technical Reference)
pdf icon
Datasheet - LC1D126BL(Technical Reference)
pdf icon
Line Drawing - LC1D126BL(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Catalogue TeSys Contactors(Technical Reference)
pdf icon
Product Change Notice (PCN)(Technical Reference)
pdf icon
Green Premium ecolabel(Technical Reference)
pdf icon
TeSys D Green Range Guide(Technical Reference)
pdf icon
Instruction Sheet - LC1D(Technical Reference)
