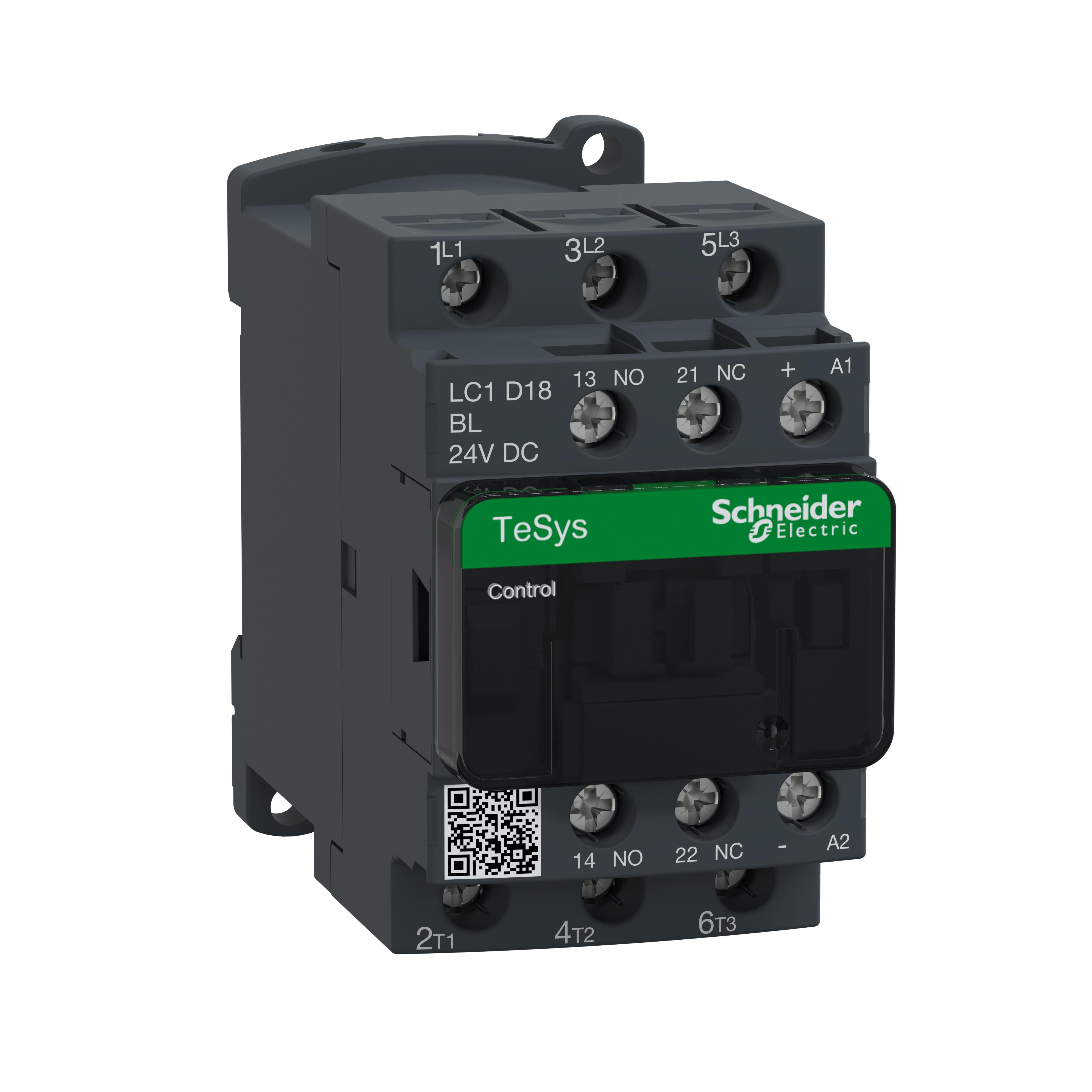

Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 18 A, 9 kW, 24 V dc Coil

LC1D18BL Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 18 A, 9 kW, 24 V dc Coil
LC1D18BL
LC1D18BL
ET13820246
ET13820246
Contactors
Contactors
Schneider Electric

Product Information

Better World Verification:
Green Premium
Better World Product:
Yes
Maximum Operating Temperature:
+60°C
Contact Current Rating:
18 A
Series:
LC1D
Minimum Operating Temperature:
-5°C
Coil Voltage:
24 V dc
Length:
77mm
Mounting Style:
Plate, Rail
Width:
45mm
Depth:
93mm
Number Of Auxiliary Contacts:
2
Normal State Configuration:
3NO
Range:
TeSys D
Auxiliary Contact Configuration:
1NO + 1NC
Power Rating:
7.5 kW
Contact Voltage Rating:
690 V ac
Number of Poles:
3
Terminal Type:
Screw
RoHS Status:
ROHS3 Compliant
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 60°C
Coil Resistance:
-
Switching Voltage:
690VAC - Max
Coil Power:
-
REACH Status:
REACH Affected
Must Operate Voltage:
-
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Moisture Sensitivity Level (MSL):
Not Applicable
Operate Time:
88.55 ms
Must Release Voltage:
-
standardLeadTime:
5 Weeks
Contact Rating (Current):
18 A
Features:
Auxiliary Contacts, Diode
Mounting Type:
Chassis Mount
Series:
TeSys
Release Time:
30 ms
Packaging:
Box
Contact Material:
-
Checking for live stock

This is Tesys D LC1D 3 Pole Contactor 3NO 18 A 9 kW 24 V dc Coil manufactured by Schneider Electric. The manufacturer part number is LC1D18BL. Better World Verification Options - green premium. Is it a better world product? yes. It has a maximum operating temperature of +60°c. The rated contact current is 18 a. The product lc1d, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -5°c. The coil voltage of the product is 24 v dc. Its accurate length is 77mm. The product is available in plate, rail style. Furthermore, the product is 45mm wide. The product comes in 93mm depth. It is composed of [Number of Auxiliary Contacts] auxiliary contacts. The normal state configuration includes 3no. It features tesys d range. In addition, it has a standard 1no + 1nc auxiliary contact configuration . Feature 7.5 kw of power rating. The integrated contact has 690 v ac of voltage rating. It has equipped with 3 poles. The terminal is a screw type. The product is rohs3 compliant. The coil voltage of the product is 24vdc. Moreover, it has screw terminal terminal style. The product has -40°c ~ 60°c operating temperature range. The product's switching voltage is 690vac - max. In addition, it is reach affected. The schneider electric's product offers user-desired applications. It also has a 3pst-no (3 form a) contact form. Its typical moisture sensitivity level is not applicable. The operating time of the product is 88.55 ms. It has a long 5 weeks standard lead time. It has a contact current rating of 18 a. The splendid features of the product include auxiliary contacts, diode. The product is available in chassis mount configuration. The product tesys, is a highly preferred choice for users. While 30 ms is its release time. In addition, box is the available packaging type of the product.

pdf icon
UL E164862(Technical Reference)
pdf icon
CSA 43364(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Datasheet(Technical Reference)
pdf icon
Datasheet LC1D18BL(Technical Reference)
pdf icon
Instruction Sheet - LC1D(Technical Reference)
