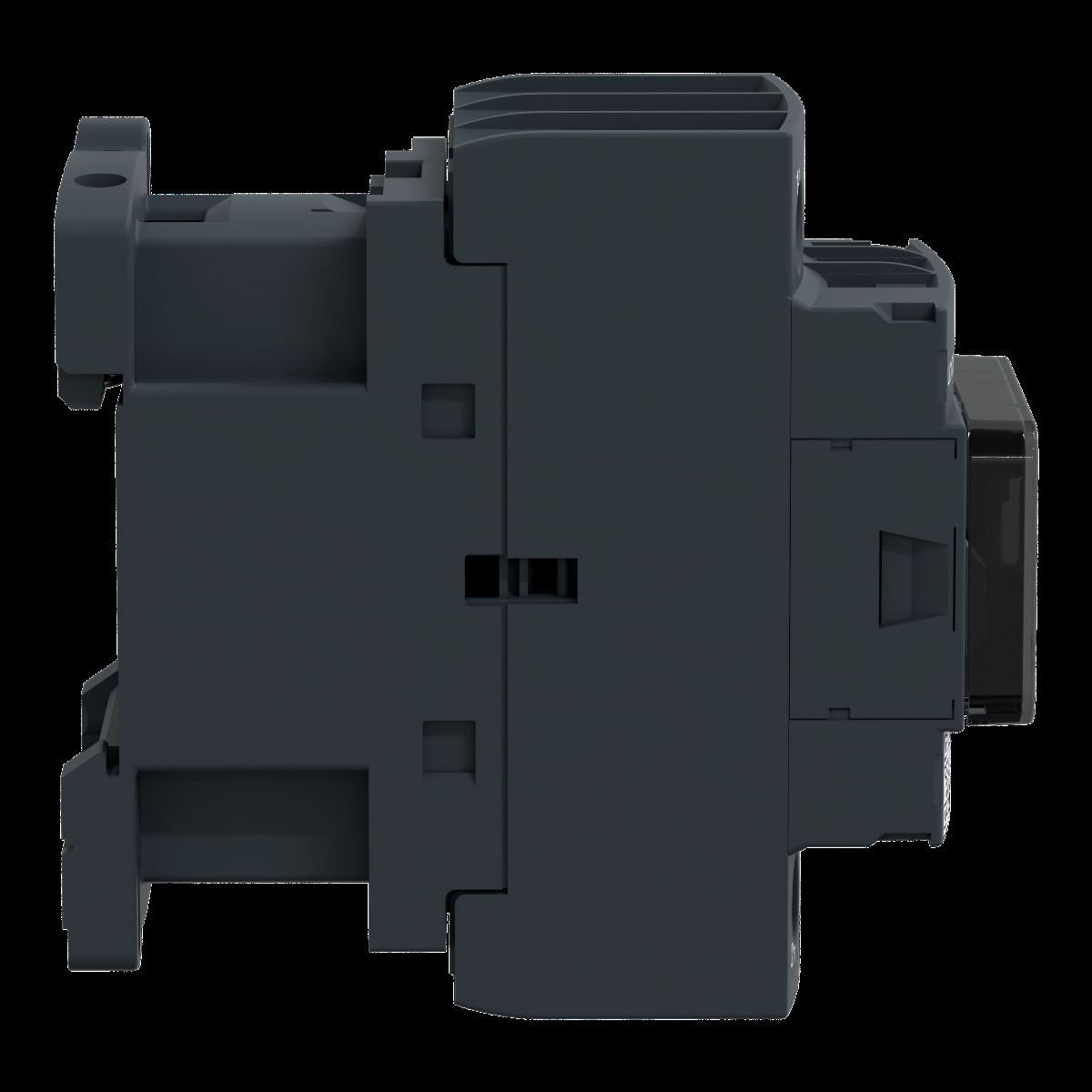

Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 38 A, 18.5 kW, 48 V ac Coil

LC1D38E7 Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 38 A, 18.5 kW, 48 V ac Coil
LC1D38E7
LC1D38E7
ET13810354
ET13810354
Schneider Electric

Product Information

Coil Voltage:
48 V ac
Pole and Throw Configuration:
3P
Width:
45mm
Range:
TeSys D
Input Current:
38A
Load Current:
50A
Contact Current Rating:
38 A
Maximum Operating Temperature:
+60°C
Load Voltage:
690V ac
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=21194&DisplayLogo=False
Control Voltage:
48 V ac
Length:
85mm
Better World Verification:
Green Premium
Better World Product:
Yes
Series:
LC1D
Depth:
92mm
Terminal Type:
Screw
Mounting Style:
DIN Rail Mount
Number Of Auxiliary Contacts:
2
Normal State Configuration:
3NO
Auxiliary Contact Configuration:
1NO + 1NC
Power Rating:
18.5 kW
Contact Voltage Rating:
440 V ac
Number of Poles:
3
Minimum Operating Temperature:
-40°C
RoHs Compliant
Checking for live stock

This is Tesys D LC1D 3 Pole Contactor 3NO 38 A 18.5 kW 48 V ac Coil manufactured by Schneider Electric. The manufacturer part number is LC1D38E7. The coil voltage of the product is 48 v ac. It has 3p pole and throw configuration. Furthermore, the product is 45mm wide. It features tesys d range. It has about 38a input current . It has a typical 50a load current. The rated contact current is 38 a. It has a maximum operating temperature of +60°c. Additionally, it can withstand 690v ac load voltage . It has 48 v ac control voltage . Its accurate length is 85mm. Better World Verification Options - green premium. Is it a better world product? yes. The product lc1d, is a highly preferred choice for users. The product comes in 92mm depth. The terminal is a screw type. The product is available in din rail mount style. It is composed of [Number of Auxiliary Contacts] auxiliary contacts. The normal state configuration includes 3no. In addition, it has a standard 1no + 1nc auxiliary contact configuration . Feature 18.5 kw of power rating. The integrated contact has 440 v ac of voltage rating. It has equipped with 3 poles. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
Datasheet LC1D38E7(Technical Reference)
pdf icon
Instruction Sheet - LC1D Series(Technical Reference)
pdf icon
Product Change Notice (PCN)(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Catalogue - Safety Chain Solutions, Safety Functions(Technical Reference)
pdf icon
TeSys-to-Everlink-cross-references(Technical Reference)
