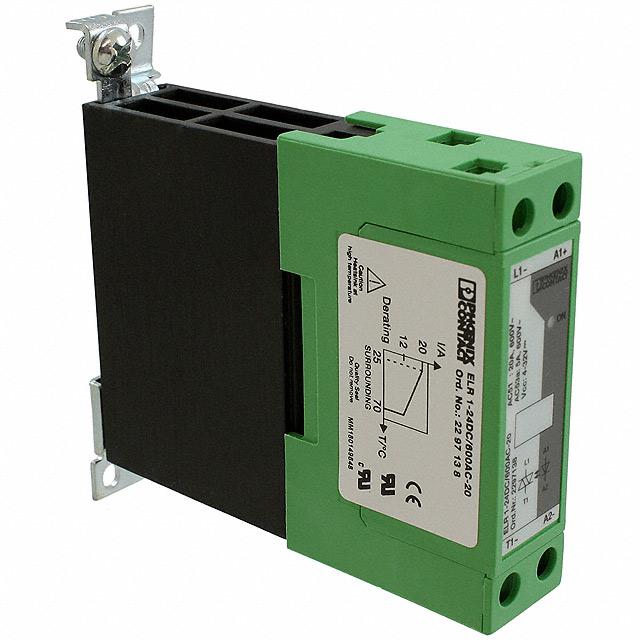

Phoenix Contact 2297138

2297138 Phoenix Contact
2297138
Phoenix Contact

Product Information

Load Current:
20A
Operating Temperature Range:
-30 → +70 °C
Length:
103mm
Pole and Throw Configuration:
3P
Mounting Style:
DIN Rail Mount
Width:
22.5mm
Depth:
103mm
Supply Voltage:
24 V dc
Minimum Operating Temperature:
-30°C
Maximum Operating Temperature:
+70°C
Terminal Type:
Screw
HTSUS:
8536.49.0065
RoHS Status:
RoHS Compliant
Termination Style:
Screw Terminal
Package / Case:
SSR with Integrated Heat Sink
Voltage - Input:
4 ~ 32VDC
Load Current:
20 A
Output Type:
AC, Zero Cross
edacadModel:
2297138 Models
edacadModelUrl:
/en/models/2525474
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO (1 Form A)
Mounting Type:
Chassis Mount, DIN Rail
Series:
ELR 1
Voltage - Load:
42 ~ 660V
Packaging:
Bulk
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 2297138. It has a typical 20a load current. The product has -30 → +70 °c of operating temperature range. Its accurate length is 103mm. It has 3p pole and throw configuration. The product is available in din rail mount style. Furthermore, the product is 22.5mm wide. The product comes in 103mm depth. Features 24 v dc supply voltage. Whereas, the minimum operating temperature of the product is -30°c. It has a maximum operating temperature of +70°c. The terminal is a screw type. It is assigned with possible HTSUS value of 8536.49.0065. The product is rohs compliant. Moreover, it has screw terminal terminal style. Moreover, the product comes in ssr with integrated heat sink. The possible product's input voltage is 4 ~ 32vdc. It has a typical 20 a load current. Furthermore, it has aac, zero cross output. The phoenix contact's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no (1 form a) circuit. The product is available in chassis mount, din rail configuration. The product elr 1, is a highly preferred choice for users. The given load voltage is 42 ~ 660v. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number.

pdf icon
ELR 1- 24DC/600AC-20 Contactor Data Sheet(Technical Reference)
pdf icon
22971yy 27/Nov/2019(PCN Obsolescence/ EOL)
pdf icon
2297138(Datasheets)
