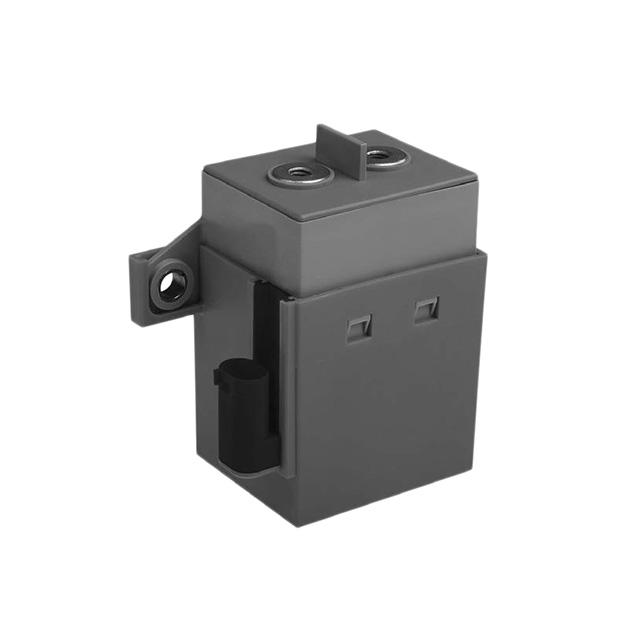

TE Connectivity Potter & Brumfield Relays V23720A0101B001

V23720A0101B001 TE Connectivity Potter & Brumfield Relays
TE Connectivity Potter & Brumfield Relays

Product Information

HTSUS:
8536.41.0045
RoHS Status:
ROHS3 Compliant
Coil Voltage:
12VDC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 85°C
Coil Resistance:
3.9Ohms
Switching Voltage:
800VDC - Nom
Coil Power:
-
REACH Status:
REACH Unaffected
Must Operate Voltage:
5.3 VDC
Package:
Bulk
Contact Form:
SPST-NO (DM) (1 Form X)
Moisture Sensitivity Level (MSL):
Not Applicable
Operate Time:
25 ms
Must Release Voltage:
2 VDC
standardLeadTime:
33 Weeks
Contact Rating (Current):
250 A
Features:
-
Mounting Type:
Chassis Mount
Series:
EVC 250-800
Release Time:
25 ms
ECCN:
EAR99
Base Product Number:
V23720
Contact Material:
Silver Alloy
Checking for live stock

This is manufactured by TE Connectivity Potter & Brumfield Relays. The manufacturer part number is V23720A0101B001. It is assigned with possible HTSUS value of 8536.41.0045. The product is rohs3 compliant. The coil voltage of the product is 12vdc. Moreover, it has screw terminal terminal style. The product has -40°c ~ 85°c operating temperature range. It holds up to 3.9ohms coil resistance. The product's switching voltage is 800vdc - nom. In addition, it is reach unaffected. On the other hand, 5.3 vdc is the given crucial/must operating voltage. It is shipped in bulk package . It also has a spst-no (dm) (1 form x) contact form. Its typical moisture sensitivity level is not applicable. The operating time of the product is 25 ms. While the must release voltage is a 2 vdc. It has a long 33 weeks standard lead time. It has a contact current rating of 250 a. The product is available in chassis mount configuration. The product evc 250-800, is a highly preferred choice for users. While 25 ms is its release time. The product is designated with the ear99 code number. Moreover, it corresponds to v23720, a base product number of the product. The product is made from sturdy silver alloy materials.

pdf icon
Tooling transfer 13/MAY/2022(PCN Assembly/Origin)
pdf icon
Multiple Devices Product Improvement 29/May/2019(PCN Design/Specification)
pdf icon
Multiple Devices Product Improvement 10/Nov/2018(PCN Design/Specification)
