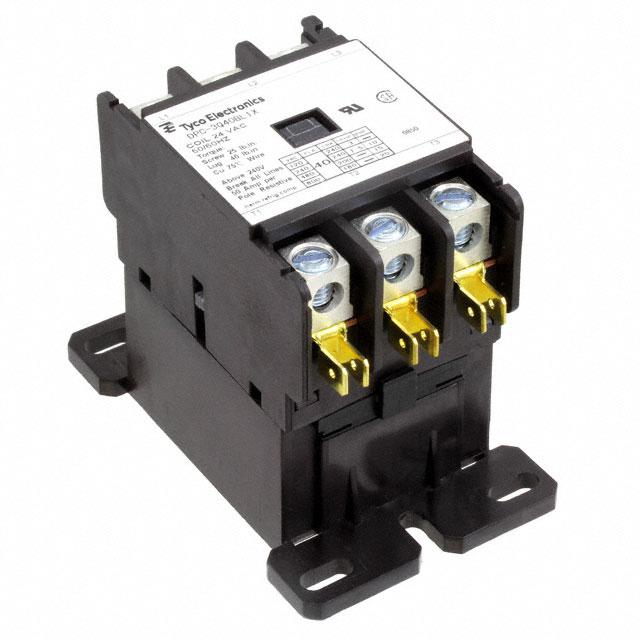

TE Connectivity Potter & Brumfield Relays DPC-3Q40BL1X

DPC-3Q40BL1X TE Connectivity Potter & Brumfield Relays
TE Connectivity Potter & Brumfield Relays

Product Information

HTSUS:
8536.41.0050
Coil Voltage:
24VAC
Termination Style:
Screw Terminal, Quick Connect - 0.250" (6.3mm)
Operating Temperature:
-40°C ~ 65°C
Coil Resistance:
5.8Ohms
Switching Voltage:
600VAC - Max
Coil Power:
6VA
Must Operate Voltage:
18 VAC
Package:
Bulk
Contact Form:
3PST-NO (DM) (3 Form X)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Must Release Voltage:
6 VAC
Contact Rating (Current):
40 A
Features:
Test Button
Mounting Type:
Chassis Mount
Series:
DPC, Products Unlimited
ECCN:
EAR99
Base Product Number:
DPC
Contact Material:
Silver Cadmium Oxide (AgCdO)
Checking for live stock

This is manufactured by TE Connectivity Potter & Brumfield Relays. The manufacturer part number is DPC-3Q40BL1X. It is assigned with possible HTSUS value of 8536.41.0050. The coil voltage of the product is 24vac. Moreover, it has screw terminal, quick connect - 0.250" (6.3mm) terminal style. The product has -40°c ~ 65°c operating temperature range. It holds up to 5.8ohms coil resistance. The product's switching voltage is 600vac - max. Robust coil power of 6va. On the other hand, 18 vac is the given crucial/must operating voltage. It is shipped in bulk package . It also has a 3pst-no (dm) (3 form x) contact form. Its typical moisture sensitivity level is 1 (unlimited). While the must release voltage is a 6 vac. It has a contact current rating of 40 a. The splendid features of the product include test button. The product is available in chassis mount configuration. The product dpc, products unlimited, is a highly preferred choice for users. The product is designated with the ear99 code number. Moreover, it corresponds to dpc, a base product number of the product. The product is made from sturdy silver cadmium oxide (agcdo) materials.

pdf icon
y-1672328-y 14/Aug/2015(PCN Obsolescence/ EOL)
pdf icon
DPC Series Datasheet(Datasheets)
