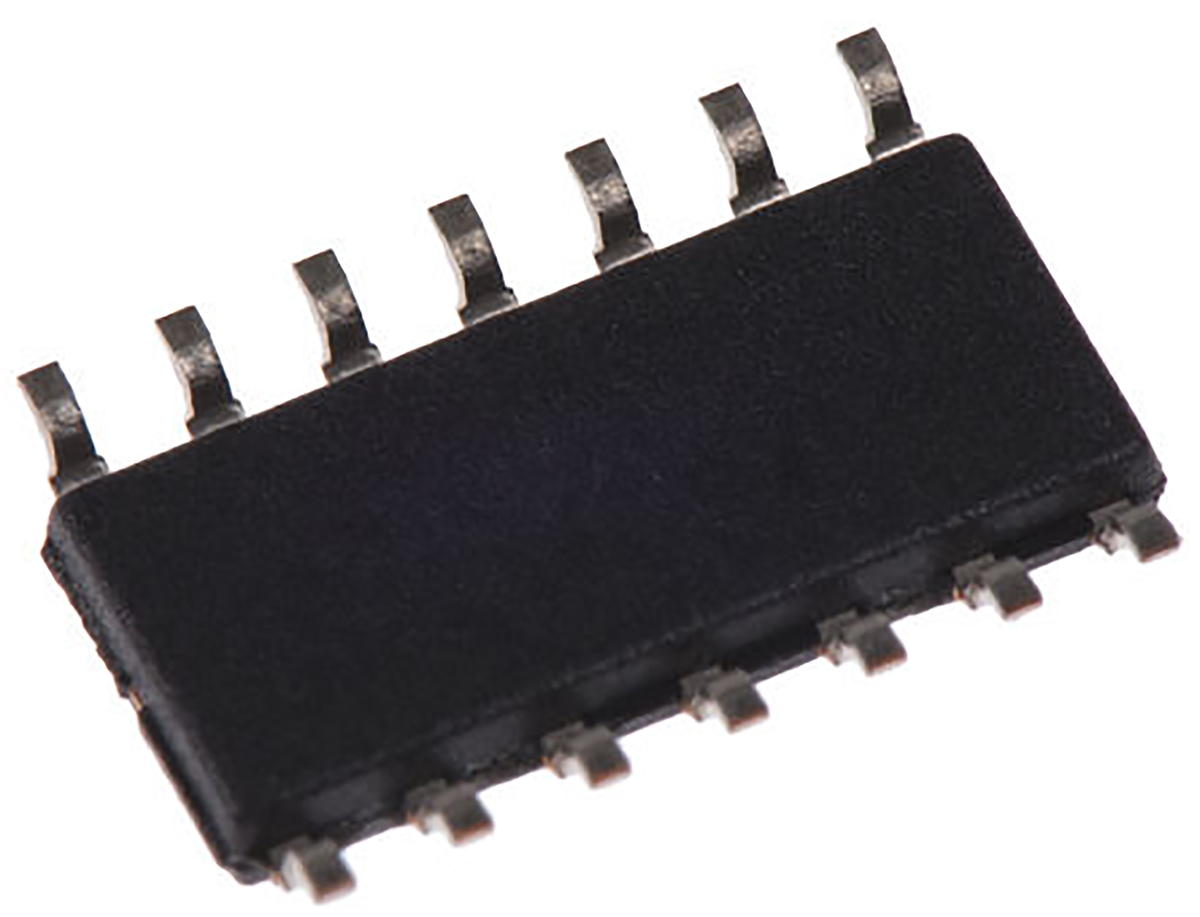

DiodesZetex LM2901AQS14-13 Quad Comparator, CMOS/TTL O/P, 300ns 2 → 36 V 14-Pin SO

LM2901AQS14-13 DiodesZetex Quad Comparator, CMOS/TTL O/P, 300ns 2 → 36 V 14-Pin SO
LM2901AQS14-13
DiodesZetex

Product Information

Typical Dual Supply Voltage:
±1 → ±18V
Comparator Type:
Quad Differential
Dimensions:
8.74 x 3.99 x 1.45mm
Mounting Type:
Surface Mount
Power Supply Type:
Dual, Single
Number of Channels per Chip:
4
Typical Single Supply Voltage:
2 → 36 V
Output Type:
CMOS, MOS, TTL
Height:
1.45mm
Width:
3.99mm
Length:
8.74mm
Package Type:
SO
Minimum Operating Temperature:
-40 °C
Typical Response Time:
300ns
Typical Voltage Gain:
200 V/mV
Maximum Operating Temperature:
+125 °C
Pin Count:
14
RoHs Compliant
Checking for live stock

This is Quad Comparator CMOS/TTL O/P 300ns 2 → 36 V 14-Pin SO manufactured by DiodesZetex. The manufacturer part number is LM2901AQS14-13. While ±1 → ±18v is the typical dual supply voltage. It has an adorable quad differential type comparator . The given dimensions of the product include 8.74 x 3.99 x 1.45mm. The product is available in surface mount configuration. It is a type of dual, single power supply. It comprises 4 channels per chip. It has a typical single supply voltage of 2 → 36 v. Furthermore, it has acmos, mos, ttl output. In addition, the height is 1.45mm. Furthermore, the product is 3.99mm wide. Its accurate length is 8.74mm. The package is a sort of so. Whereas, the minimum operating temperature of the product is -40 °c. It has a typical 300ns response time . Furthermore, its typical voltage gain includes 200 v/mv. It has a maximum operating temperature of +125 °c. It contains 14 pins.

pdf icon
LM2901/2903Q Dual & Quad Comparators(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
