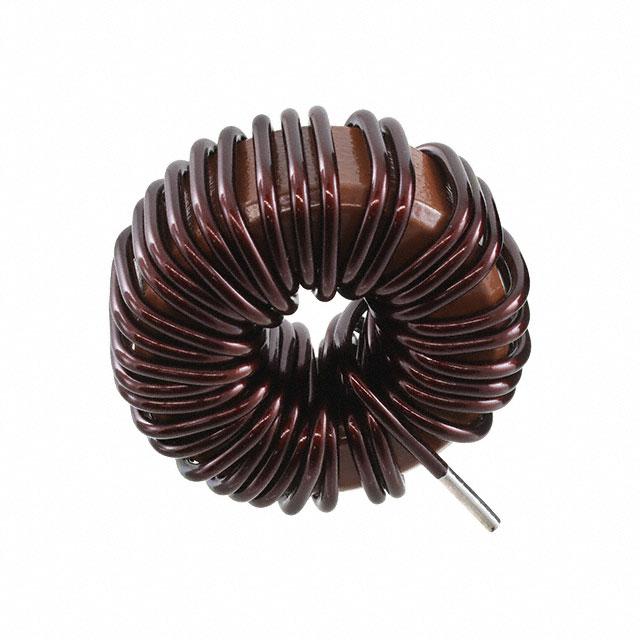

Normal Mode Choke 140.4UH 20A 0.0118R

HHBC24W-2R4A0174V Normal Mode Choke 140.4UH 20A 0.0118R
HHBC24W-2R4A0174V
KEMET

Product Information

Dimensions:
57.6 (Dia.) x 30.9mm
Mounting Type:
Through Hole
Maximum Current:
20 A
Series:
HHBC
Operating Temperature Range:
-40°C → +125°C
Termination Style:
Solder Pad
Height:
57.6mm
Test Frequency:
100 kHz
Depth:
30.9mm
Inductance:
174 μH
Maximum Operating Temperature:
+125°C
Number of Lines:
2
Minimum Operating Temperature:
-40°C
DC Resistance:
11.8mΩ
Ratings:
-
HTSUS:
8548.00.0000
RoHS Status:
ROHS3 Compliant
Voltage Rating - DC:
-
Operating Temperature:
-40°C ~ 125°C
Approval Agency:
-
Package / Case:
Vertical, No Base, 2 PC Pin
Number of Lines:
2
Current Rating (Max):
20A
title:
HHBC24W-2R4A0174V
Voltage Rating - AC:
-
REACH Status:
REACH Unaffected
edacadModel:
HHBC24W-2R4A0174V Models
Inductance @ Frequency:
174 µH @ 100 kHz
edacadModelUrl:
/en/models/9664401
Manufacturer:
KEMET
Size / Dimension:
-
Filter Type:
-
standardLeadTime:
25 Weeks
DC Resistance (DCR) (Max):
11.8mOhm
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
-
Mounting Type:
Through Hole
Series:
HHBC
Packaging:
Bulk
Base Product Number:
HHBC24W
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Normal Mode Choke 140.4UH 20A 0.0118R manufactured by KEMET. The manufacturer part number is HHBC24W-2R4A0174V. The given dimensions of the product include 57.6 (dia.) x 30.9mm. The product is available in through hole configuration. It also carries 20 a maximum current. The product hhbc, is a highly preferred choice for users. The product has -40°c → +125°c of operating temperature range. Moreover, it has solder pad terminal style. In addition, the height is 57.6mm. It features a test frequency of 100 khz. The product comes in 30.9mm depth. The product has a 174 μh inductance value. It has a maximum operating temperature of +125°c. It is comprised of 2 lines. Whereas, the minimum operating temperature of the product is -40°c. It has about 11.8mω DC resistance . It is assigned with possible HTSUS value of 8548.00.0000. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in vertical, no base, 2 pc pin. The maximum current rating is 20a. In addition, it is reach unaffected. Typical inductance of 174 µh @ 100 khz. The kemet's product offers user-desired applications. It has a long 25 weeks standard lead time. The product's maximum DC resistance is 11.8mohm. Its typical moisture sensitivity level is not applicable. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to hhbc24w, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Specification sheet(Technical Reference)
pdf icon
KEM_LF0050_HHBC.pdf(Datasheets)
