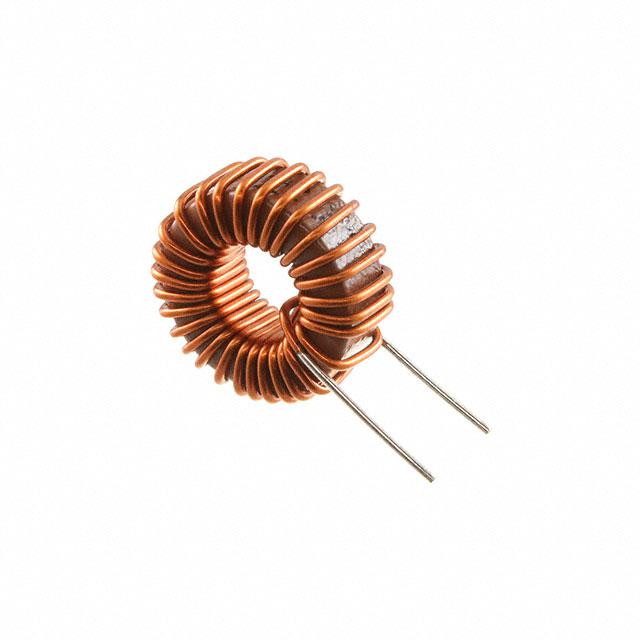

Normal Mode Choke 22.9UH 2A 0.0411R

HHBC8S-0R6A0024V Normal Mode Choke 22.9UH 2A 0.0411R
HHBC8S-0R6A0024V
KEMET

Product Information

Dimensions:
16 (Dia.) x 8.8mm
Mounting Type:
Through Hole
Maximum Current:
2 A
Series:
HHBC
Operating Temperature Range:
-40°C → +125°C
Termination Style:
Solder Pad
Height:
16mm
Test Frequency:
100 kHz
Depth:
8.8mm
Inductance:
24 μH
Maximum Operating Temperature:
+125°C
Number of Lines:
2
Minimum Operating Temperature:
-40°C
DC Resistance:
41.1mΩ
Ratings:
-
HTSUS:
8548.00.0000
RoHS Status:
ROHS3 Compliant
Inductance @ Frequency:
24 µH @ 100 kHz
Voltage Rating - DC:
-
Operating Temperature:
-40°C ~ 125°C
Approval Agency:
-
Package / Case:
Vertical, No Base, 2 PC Pin
Number of Lines:
2
Current Rating (Max):
2A
Height (Max):
0.630" (16.00mm)
Voltage Rating - AC:
-
REACH Status:
REACH Unaffected
edacadModel:
HHBC8S-0R6A0024V Models
edacadModelUrl:
/en/models/9664380
Package:
Bulk
Size / Dimension:
0.630" Dia (16.00mm)
Filter Type:
-
standardLeadTime:
30 Weeks
DC Resistance (DCR) (Max):
41.1mOhm
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
-
Mounting Type:
Through Hole
Series:
HHBC
Base Product Number:
HHBC8S
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Normal Mode Choke 22.9UH 2A 0.0411R manufactured by KEMET. The manufacturer part number is HHBC8S-0R6A0024V. The given dimensions of the product include 16 (dia.) x 8.8mm. The product is available in through hole configuration. It also carries 2 a maximum current. The product hhbc, is a highly preferred choice for users. The product has -40°c → +125°c of operating temperature range. Moreover, it has solder pad terminal style. In addition, the height is 16mm. It features a test frequency of 100 khz. The product comes in 8.8mm depth. The product has a 24 μh inductance value. It has a maximum operating temperature of +125°c. It is comprised of 2 lines. Whereas, the minimum operating temperature of the product is -40°c. It has about 41.1mω DC resistance . It is assigned with possible HTSUS value of 8548.00.0000. The product is rohs3 compliant. Typical inductance of 24 µh @ 100 khz. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in vertical, no base, 2 pc pin. The maximum current rating is 2a. Additionally, the 0.630" (16.00mm) is the maximum height of the product. In addition, it is reach unaffected. It is shipped in bulk package . The product's diameters include 0.630" dia (16.00mm). It has a long 30 weeks standard lead time. The product's maximum DC resistance is 41.1mohm. Its typical moisture sensitivity level is not applicable. Moreover, it corresponds to hhbc8s, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Specification sheet(Technical Reference)
pdf icon
KEM_LF0050_HHBC.pdf(Datasheets)
