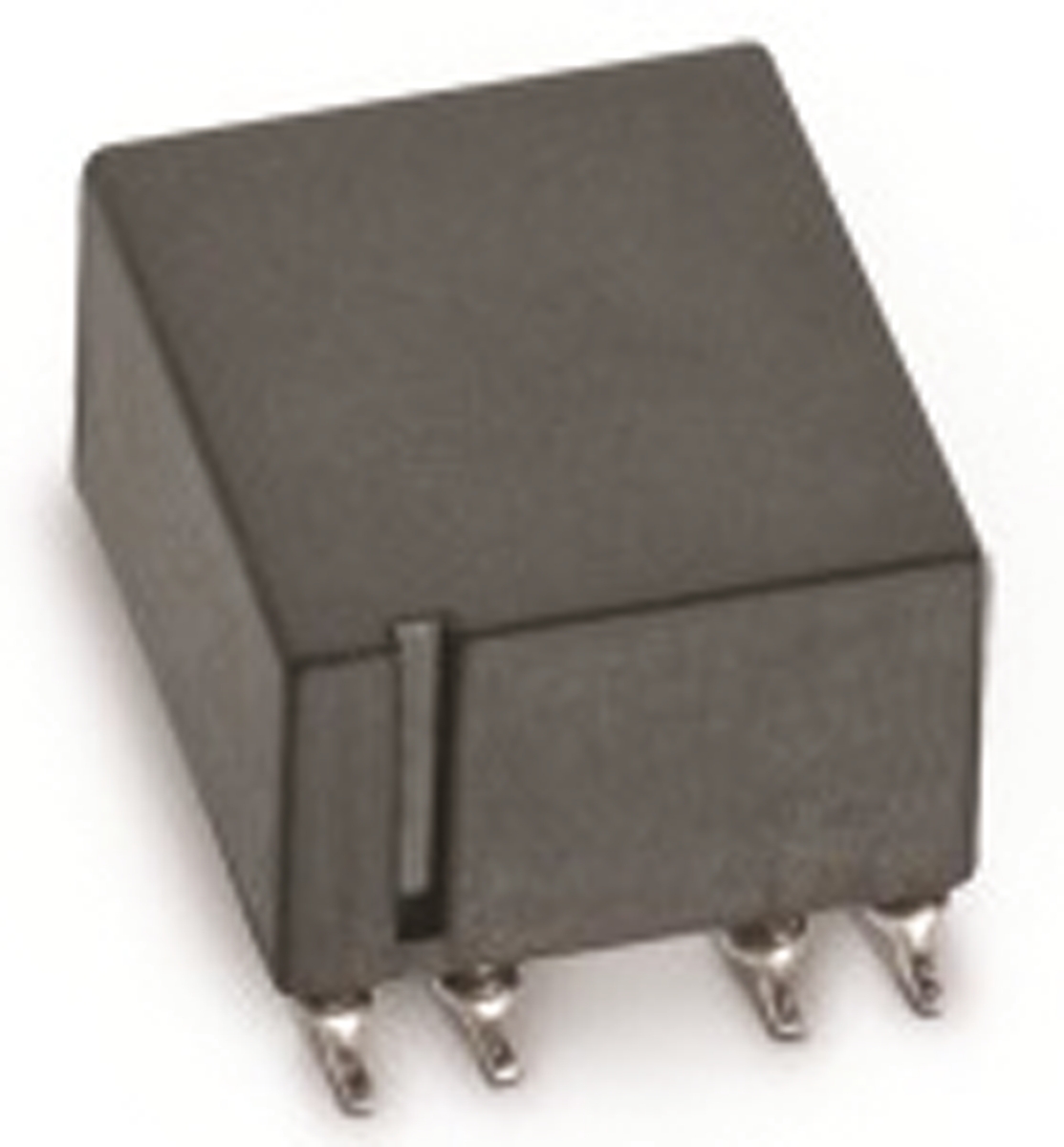

Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core, 2 x 47 mH ±30% Sectional Winding

Enrgtech Part No: ET13828189
|
Manufacturer Part No:
744290473
|
Manufacturer: Wurth Elektronik

744290473 Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core, 2 x 47 mH ±30% Sectional Winding

Product Information

Maximum Current:

0.25 A

Dimensions:

14 x 12.5 x 7.8mm

Mounting Type:

Axial

Voltage Rating:

80V

Series:

WE-UCF

Operating Temperature Range:

-40°C → +150°C

Termination Style:

Solder Pad

Length:

14mm

Height:

7.8mm

Test Frequency:

50 Hz

Depth:

12.5mm

Inductance:

2x 47 mH

Checking for live stock

This is Wurth WE-UCF Series Shielded SMD Common Mode Line Filter with a Ferrite Core 2 x 47 mH ±30% Sectional Winding manufactured by Wurth Elektronik. The manufacturer part number is 744290473. It also carries 0.25 a maximum current. The given dimensions of the product include 14 x 12.5 x 7.8mm. The product is available in axial configuration. Moreover, the product has a nominal 80v voltage rating. The product we-ucf, is a highly preferred choice for users. The product has -40°c → +150°c of operating temperature range. Moreover, it has solder pad terminal style. Its accurate length is 14mm. In addition, the height is 7.8mm. It features a test frequency of 50 hz. The product comes in 12.5mm depth. The product has a 2x 47 mh inductance value. It has a maximum operating temperature of +125°c. It is comprised of 2 lines. Whereas, the minimum operating temperature of the product is -40°c. It has about 2x 4.0ω DC resistance .

WE-UCF SMD Common Mode Line Filter - 744290473 Datasheet(Technical Reference)

WE eiSos Embedded Flyer(Technical Reference)
