Wurth Electronics Inc. 744273501

744273501 Wurth Electronics Inc.
744273501
744273501
ET11074352
ET11074352
Wurth Electronics Inc.

Product Information

Manufacturer Standard Lead Time:
14 Weeks
Size / Dimension:
0.374" L x 0.327" W (9.50mm x 8.30mm)
Detailed Description:

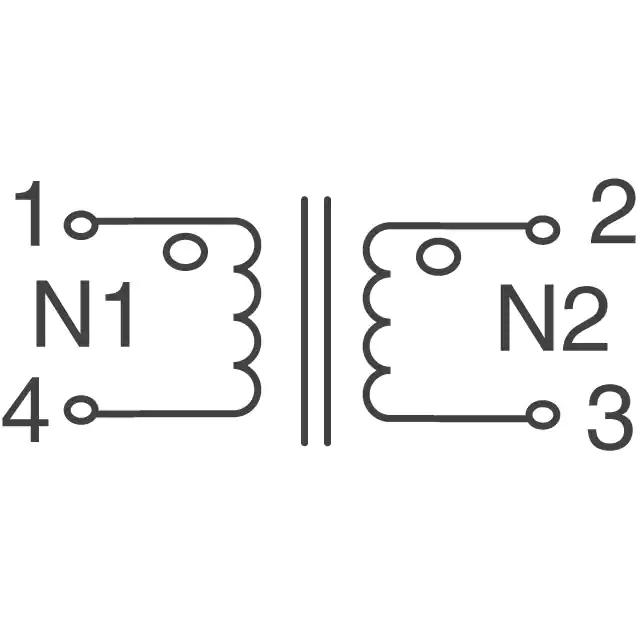

5µH @ 100kHz 2 Line Common Mode Choke Surface Mount 500 Ohms @ 130MHz 5A DCR 5.5mOhm
DC Resistance (DCR) (Max):
5.5mOhm
Mounting Type:
Surface Mount
Height (Max):
0.209" (5.30mm)
Series:
WE-SL5
Packaging:
Cut Tape (CT)
Inductance @ Frequency:
5µH @ 100kHz
Operating Temperature:
-40°C ~ 125°C
Current Rating (Max):
5A
Package / Case:
Horizontal, 4 PC Pad
Voltage Rating - DC:
80V
Filter Type:
Signal Line
Impedance @ Frequency:
500 Ohms @ 130MHz
Number of Lines:
2
Manufacturer:
Wurth Electronics Inc.
Checking for live stock

This is manufactured by Wurth Electronics Inc.. The manufacturer part number is 744273501. It has typical 14 weeks of manufacturer standard lead time. The product's diameters include 0.374" l x 0.327" w (9.50mm x 8.30mm). It features 5µh @ 100khz 2 line common mode choke surface mount 500 ohms @ 130mhz 5a dcr 5.5mohm. The product's maximum DC resistance is 5.5mohm. The product is available in surface mount configuration. Additionally, the 0.209" (5.30mm) is the maximum height of the product. The product we-sl5, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. Typical inductance of 5µh @ 100khz. The product has -40°c ~ 125°c operating temperature range. The maximum current rating is 5a. Moreover, the product comes in horizontal, 4 pc pad. 80v of DC voltage rating. The filter is a signal line type with excellent features. It has an impedance at given frequency values; 500 ohms @ 130mhz. It is comprised of 2 lines. The wurth electronics inc.'s product offers user-desired applications.

pdf icon
RoHS Cert(Environmental Information)
pdf icon
WE-SL5HC Series 10/Oct/2014(PCN Design/Specification)
pdf icon
Plastic Housing chg 14/Nov/2016(PCN Design/Specification)
pdf icon
744273501(Datasheets)
pdf icon
1583 (UK2011-EN PDF)(Catalog Page)

Reviews

  • Be the first to review.

FAQs

Yes. We ship 744273501 Internationally to many countries around the world.
Yes. You can also search 744273501 on website for other similar products.
We accept all major payment methods for all products including ET11074352. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11074352 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Wurth Electronics Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET11074352.
You can order Wurth Electronics Inc. brand products with 744273501 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Common Mode Chokes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Wurth Electronics Inc. 744273501. You can also check on our website or by contacting our customer support team for further order details on Wurth Electronics Inc. 744273501.
