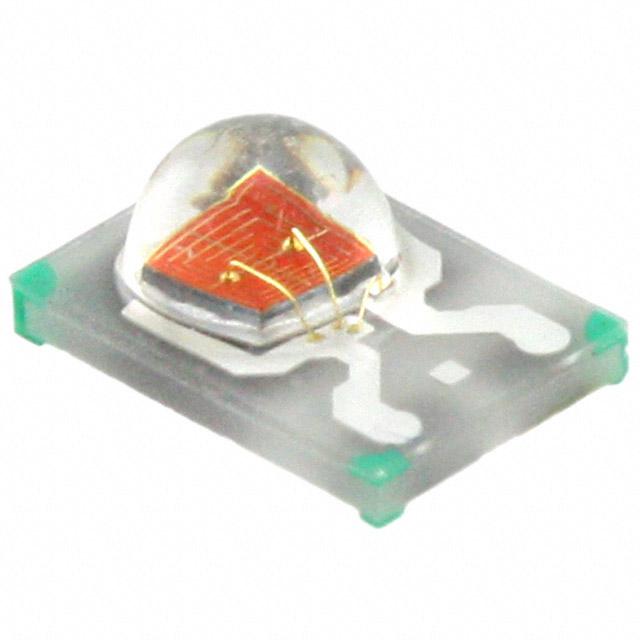

Everlight Electronics Co Ltd ELSH-F61O1-0LPNM-AR3R4

ELSH-F61O1-0LPNM-AR3R4 Everlight Electronics Co Ltd
Everlight Electronics Co Ltd

Product Information

HTSUS:
8541.41.0000
RoHS Status:
ROHS3 Compliant
Package / Case:
1218 (3246 Metric)
Current - Test:
350mA
Current - Max:
600mA
Height - Seated (Max):
0.085" (2.15mm)
Viewing Angle:
120°
Thermal Resistance of Package:
12°C/W
Luminous Flux @ Current/Temperature:
65lm (60lm ~ 70lm)
Package:
Tape & Reel (TR)
Size / Dimension:
0.120" L x 0.177" W (3.05mm x 4.50mm)
Temperature - Test:
25°C
Voltage - Forward (Vf) (Typ):
2.35V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Color:
Orange
Series:
SHUEN
Supplier Device Package:
SMD
Lumens/Watt @ Current - Test:
79 lm/W
Wavelength:
615nm (610nm ~ 620nm)
Base Product Number:
ELSH-F61
ECCN:
EAR99
Checking for live stock

This is manufactured by Everlight Electronics Co Ltd. The manufacturer part number is ELSH-F61O1-0LPNM-AR3R4. It is assigned with possible HTSUS value of 8541.41.0000. The product is rohs3 compliant. Moreover, the product comes in 1218 (3246 metric). The given current test of the product is [Current -Test]. The given maximum current is 600ma. It has the maximum seated height of 0.085" (2.15mm). Furthermore, 120° is the viewing angle of the product. However, the package's thermal resistance is 12°c/w. The luminous flux of the product is 65lm (60lm ~ 70lm). It is shipped in tape & reel (tr) package . The product's diameters include 0.120" l x 0.177" w (3.05mm x 4.50mm). The product's test temperature is 25°c. The typical forward voltage (Vf) of the product is 2.35v. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. It has a classic orange colour. The product shuen, is a highly preferred choice for users. smd is the supplier device package value. 79 lm/w of watts at test current. It has a typical wavelength of 615nm (610nm ~ 620nm). Moreover, it corresponds to elsh-f61, a base product number of the product. The product is designated with the ear99 code number.
