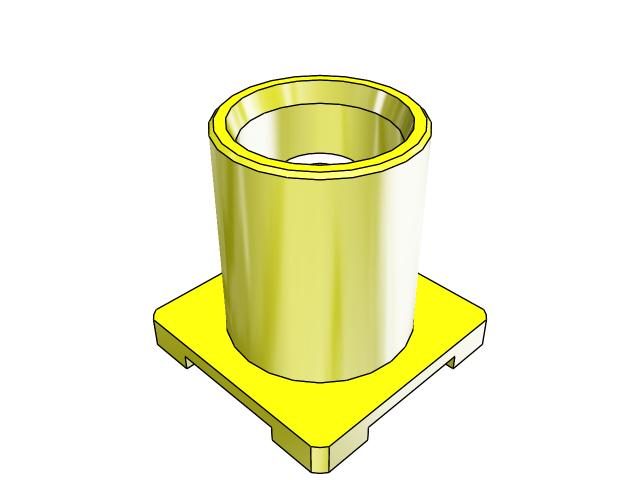

Samtec MCXSeries, Surface Mount MCX Jack, 50Ω Impedance, Solder Termination, 0 → 6GHz, Coaxial cable type

MCX-J-P-H-ST-SM1 Samtec MCXSeries, Surface Mount MCX Jack, 50Ω Impedance, Solder Termination, 0 → 6GHz, Coaxial cable type
Samtec

Product Information

Mating Type:
Quick Connect
Mounting Type:
Surface Mount
Gender:
Female
Body Orientation:
Straight
Cable Type:
Coaxial
Termination Method:
Solder
Coaxial Connector Type:
MCX Connector
Contact Plating:
Gold
Series:
MCX
Operating Frequency:
0 to 6GHz
Impedance:
50Ω
Contact Material:
Beryllium Copper, Brass
Maximum Operating Temperature:
+125°C
Minimum Operating Temperature:
-65°C
Size:
Miniature
RoHs Compliant
Checking for live stock

This is MCXSeries Surface Mount MCX Jack 50Ω Impedance Solder Termination 0 → 6GHz Coaxial cable type manufactured by Samtec. The manufacturer part number is MCX-J-P-H-ST-SM1. It is a type of quick connect mating. The product is available in surface mount configuration. In addition, female is the available "Gender" of the product. It has straight body orientation. It is a typical coaxial cable. It allows solder termination method. This coaxial connector is a type of mcx connector. The high-quality gold is used as contact plating material. The product mcx, is a highly preferred choice for users. Furthermore, the product has 0 to 6ghz operating frequency range. It has an impedance value of 50ω. The product is made from sturdy beryllium copper, brass materials. It has a maximum operating temperature of +125°c. Whereas, the minimum operating temperature of the product is -65°c. The product is available in miniature size.
