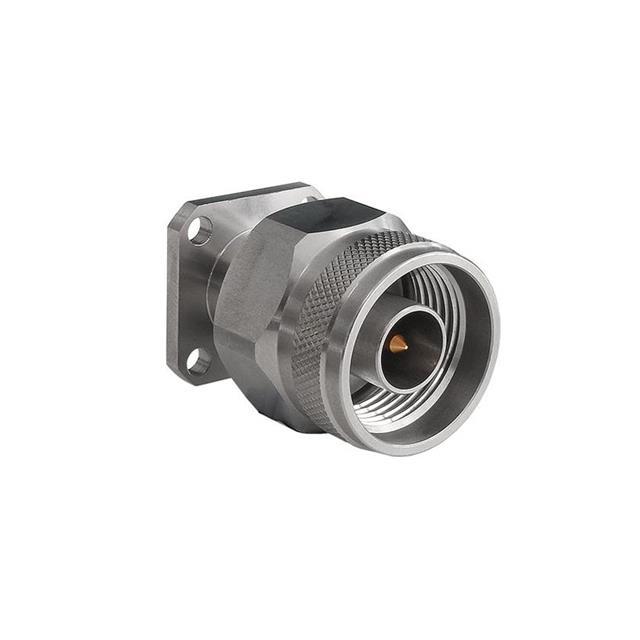

Bulgin RFNA4PGILGIE

RFNA4PGILGIE Bulgin
RFNA4PGILGIE
Bulgin

Product Information

Mounting Type:
Flange Mount
Gender:
Male
Body Orientation:
Straight
Coaxial Connector Type:
Circular Coaxial Connector
Termination Method:
Plug In
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Flange
Center Contact Material:
Beryllium Copper
Operating Temperature:
-55°C ~ 155°C
Connector Style:
N Type
Body Finish:
-
Dielectric Material:
Polyetherimide (PEI)
Insertion Loss:
-
standardLeadTime:
20 Weeks
title:
RFNA4PGILGIE
Shield Termination:
Solder
REACH Status:
REACH Unaffected
Includes:
-
edacadModel:
RFNA4PGILGIE Models
Frequency - Max:
18 GHz
Housing Color:
Silver
edacadModelUrl:
/en/models/16162302
Impedance:
50 Ohms
Cable Group:
-
Voltage Rating:
500 V
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Stainless Steel
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
Extended Insulation
Mounting Type:
Panel Mount, Through Hole
Series:
-
Center Contact Plating:
-
Packaging:
Bulk
Contact Termination:
Solder
Base Product Number:
RFNA
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Bulgin. The manufacturer part number is RFNA4PGILGIE. The product is available in flange mount configuration. In addition, male is the available "Gender" of the product. It has straight body orientation. This coaxial connector is a type of circular coaxial connector. It allows plug in termination method. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes flange. The beryllium copper material is utilised for designing its center contacts. The product has -55°c ~ 155°c operating temperature range. It comes in n type connector style. Moreover, the product is constructed from highly polyetherimide (pei) dielectric material. It has a long 20 weeks standard lead time. It has a solder shield termination. In addition, it is reach unaffected. It maximum frequency is 18 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Moreover, the product has a nominal 500 v voltage rating. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from stainless steel materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The splendid features of the product include extended insulation. The product is available in panel mount, through hole configuration. In addition, bulk is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to rfna, a base product number of the product. The product is designated with the ear99 code number.
