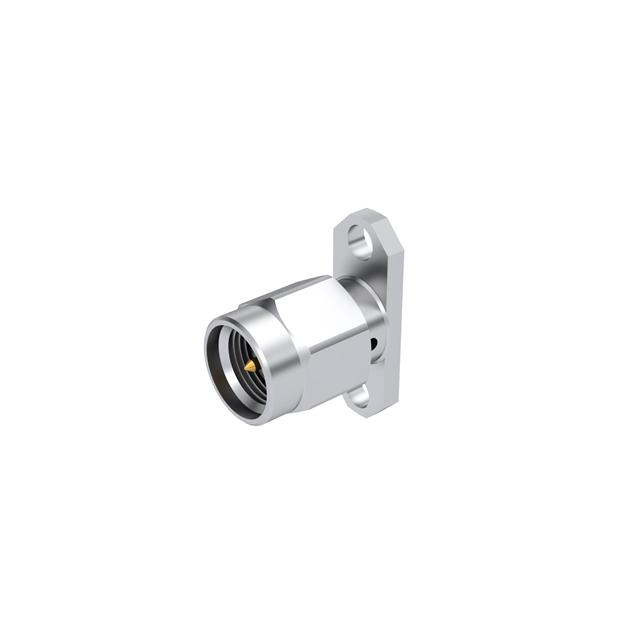

Radiall USA, Inc. R125480001

R125480001 Radiall USA, Inc.
Radiall USA, Inc.

Product Information

HTSUS:
8536.69.4010
Mounting Feature:
Flange
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 105°C
Connector Style:
SMA
Body Finish:
-
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
17 Weeks
Shield Termination:
Screw
Includes:
-
Frequency - Max:
18 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
-
Voltage Rating:
500 V
Connector Type:
Receptacle, Male Pin
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Ports:
1
Body Material:
Stainless Steel
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Series:
-
Center Contact Plating:
Gold
Packaging:
Bulk
Contact Termination:
Compression
Base Product Number:
R12548
ECCN:
EAR99
Checking for live stock

This is manufactured by Radiall USA, Inc.. The manufacturer part number is R125480001. It is assigned with possible HTSUS value of 8536.69.4010. The product's mounting feature includes flange. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 105°c operating temperature range. It comes in sma connector style. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 17 weeks standard lead time. It has a screw shield termination. It maximum frequency is 18 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Moreover, the product has a nominal 500 v voltage rating. receptacle, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. This product features 1 number of ports. The product's body is nicely designed from stainless steel materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in panel mount configuration. The center contact is plated with a [Center Contract Plating]. In addition, bulk is the available packaging type of the product. It also incorporates compression contact terminals. Moreover, it corresponds to r12548, a base product number of the product. The product is designated with the ear99 code number.
