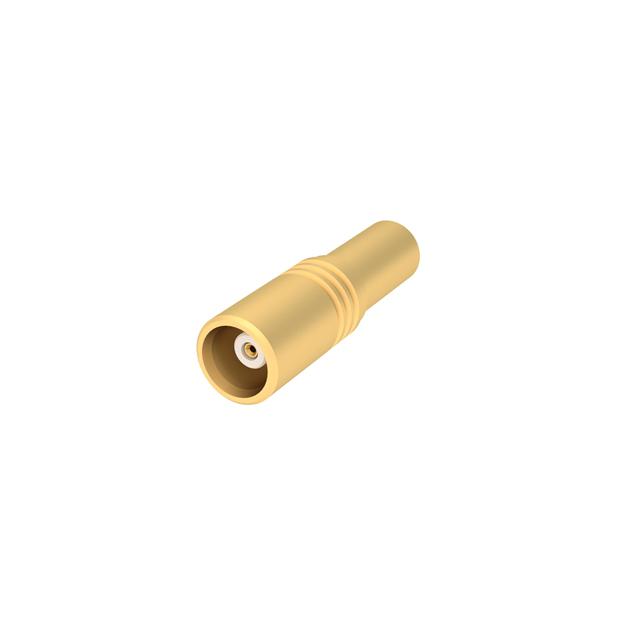

Radiall USA, Inc. R113236000

R113236000 Radiall USA, Inc.
Radiall USA, Inc.

Product Information

HTSUS:
8536.69.4010
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-55°C ~ 155°C
Connector Style:
MCX
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Shield Termination:
Crimp
Includes:
-
Frequency - Max:
6 GHz
Housing Color:
Gold
Impedance:
50 Ohms
Cable Group:
RG-178, 196
Voltage Rating:
170 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Packaging:
Bulk
Contact Termination:
Crimp
Base Product Number:
R11323
ECCN:
EAR99
Checking for live stock

This is manufactured by Radiall USA, Inc.. The manufacturer part number is R113236000. It is assigned with possible HTSUS value of 8536.69.4010. The beryllium copper material is utilised for designing its center contacts. The product has -55°c ~ 155°c operating temperature range. It comes in mcx connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. It has a crimp shield termination. It maximum frequency is 6 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-178, 196. Moreover, the product has a nominal 170 v voltage rating. jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. In addition, bulk is the available packaging type of the product. It also incorporates crimp contact terminals. Moreover, it corresponds to r11323, a base product number of the product. The product is designated with the ear99 code number.
