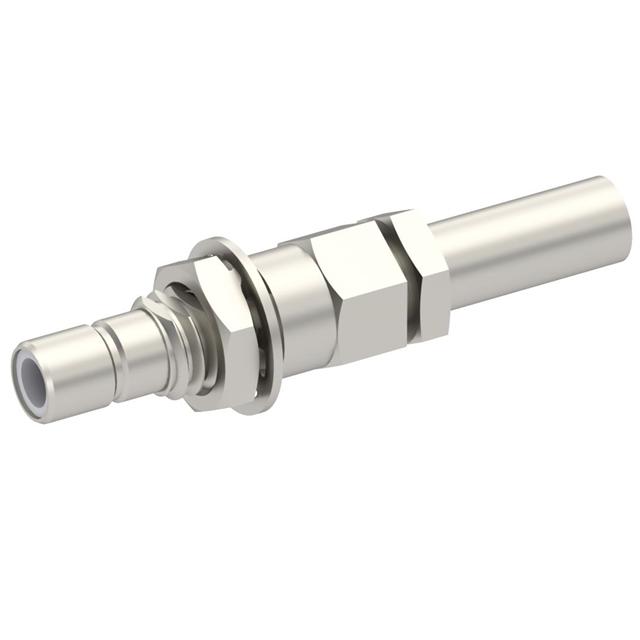

Radiall USA, Inc. 2003-7571-003

2003-7571-003 Radiall USA, Inc.
Radiall USA, Inc.

Product Information

HTSUS:
8536.69.4010
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
SMB
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.30dB
standardLeadTime:
13 Weeks
title:
2003-7571-003
Shield Termination:
Crimp
Includes:
-
Frequency - Max:
4 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-174, 188, 316
Voltage Rating:
335 V
Connector Type:
Jack, Male Pin
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Series:
-
Center Contact Plating:
Gold
Packaging:
Bulk
Contact Termination:
Crimp
Base Product Number:
2003-7571
ECCN:
EAR99
Checking for live stock

This is manufactured by Radiall USA, Inc.. The manufacturer part number is 2003-7571-003. It is assigned with possible HTSUS value of 8536.69.4010. The product's mounting feature includes bulkhead - front side nut. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in smb connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.30db of insertion loss. It has a long 13 weeks standard lead time. It has a crimp shield termination. It maximum frequency is 4 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-174, 188, 316. Moreover, the product has a nominal 335 v voltage rating. jack, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in panel mount configuration. The center contact is plated with a [Center Contract Plating]. In addition, bulk is the available packaging type of the product. It also incorporates crimp contact terminals. Moreover, it corresponds to 2003-7571, a base product number of the product. The product is designated with the ear99 code number.
