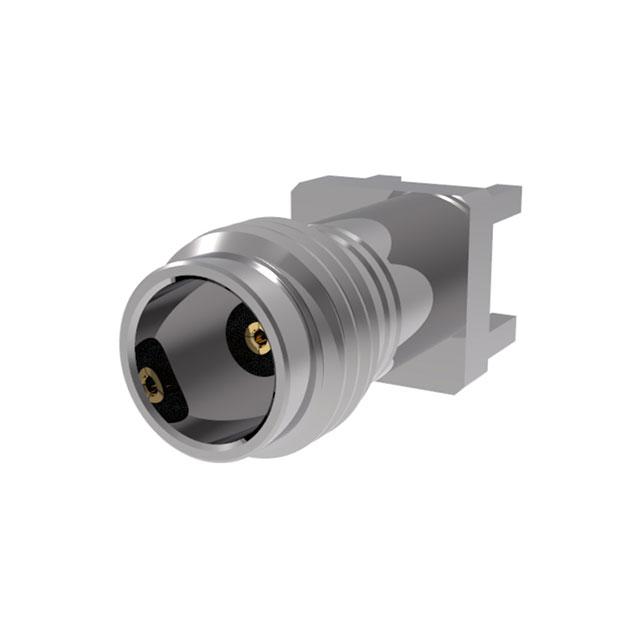

CarlisleIT TMB-V4FS-3SM

TMB-V4FS-3SM CarlisleIT
CarlisleIT

Product Information

Shield Termination:
Solder
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
2.4mm (APC-2.4, OS-50)
Body Finish:
Gold
Dielectric Material:
Polychlorotrifluoroethylene (PCTFE)
Insertion Loss:
0.6dB
standardLeadTime:
4 Weeks
Voltage Rating:
400 V
Includes:
-
Frequency - Max:
50 GHz
Housing Color:
Gold
Impedance:
50 Ohms
Cable Group:
-
Package:
Tray
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
TMB-V4
ECCN:
EAR99
Checking for live stock

This is manufactured by CarlisleIT. The manufacturer part number is TMB-V4FS-3SM. It has a solder shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in 2.4mm (apc-2.4, os-50) connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polychlorotrifluoroethylene (pctfe) dielectric material. Allows 0.6db of insertion loss. It has a long 4 weeks standard lead time. Moreover, the product has a nominal 400 v voltage rating. It maximum frequency is 50 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. It is shipped in tray package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in through hole configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to tmb-v4, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
TMB-V4FS-3SM Drawing(Product Drawings)
