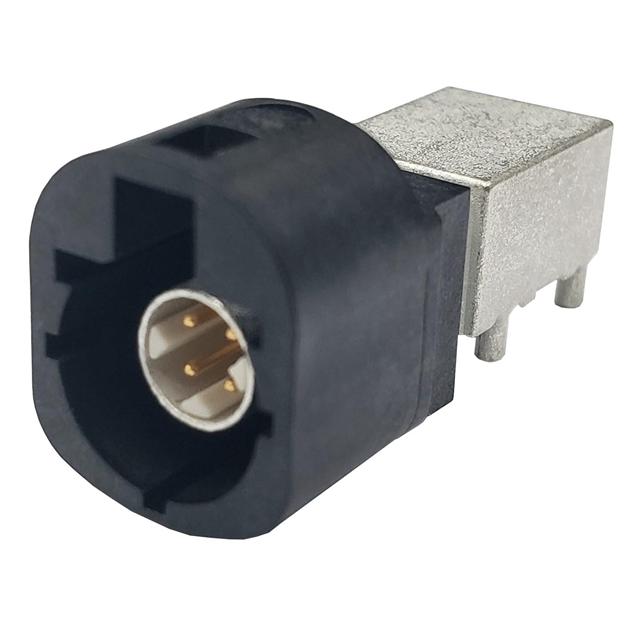

Adam Tech HSD-04A-S-PRA-SG-C1-TR

HSD-04A-S-PRA-SG-C1-TR Adam Tech
Adam Tech

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-40°C ~ 105°C
Connector Style:
HSD®, Fakra, Quadraxial
Body Finish:
Tin
Dielectric Material:
Polyamide (PA), Nylon
Insertion Loss:
0.10dB
standardLeadTime:
14 Weeks
title:
HSD-04A-S-PRA-SG-C1-TR
Shield Termination:
Solder
REACH Status:
REACH Unaffected
Includes:
-
Frequency - Max:
2 GHz
Housing Color:
Black
Impedance:
100 Ohms
Cable Group:
-
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Zinc Alloy
Fastening Type:
Latch Lock
Mating Cycles:
25
Ingress Protection:
-
Features:
Code A
Mounting Type:
Through Hole, Right Angle
Series:
HSD
Center Contact Plating:
Gold
Packaging:
Tape & Reel (TR)
Contact Termination:
Solder
Base Product Number:
HSD-04A
ECCN:
EAR99
Checking for live stock

This is manufactured by Adam Tech. The manufacturer part number is HSD-04A-S-PRA-SG-C1-TR. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. The product has -40°c ~ 105°c operating temperature range. It comes in hsd®, fakra, quadraxial connector style. The body is galvanized with nice finishing of tin. Moreover, the product is constructed from highly polyamide (pa), nylon dielectric material. Allows 0.10db of insertion loss. It has a long 14 weeks standard lead time. It has a solder shield termination. In addition, it is reach unaffected. It maximum frequency is 2 ghz. It has an integral black housing colour. It has an impedance value of 100 ohms. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from zinc alloy materials. Furthermore, latch lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 25. The splendid features of the product include code a. The product is available in through hole, right angle configuration. The product hsd, is a highly preferred choice for users. The center contact is plated with a [Center Contract Plating]. In addition, tape & reel (tr) is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to hsd-04a, a base product number of the product. The product is designated with the ear99 code number.
