Amphenol RF 182317

182317 Amphenol RF
Amphenol RF

Product Information

Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Phosphor Bronze
Operating Temperature:
-55°C ~ 85°C
Connector Style:
UHF, Mini
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Voltage Rating:
335 V
REACH Status:
REACH Affected
Includes:

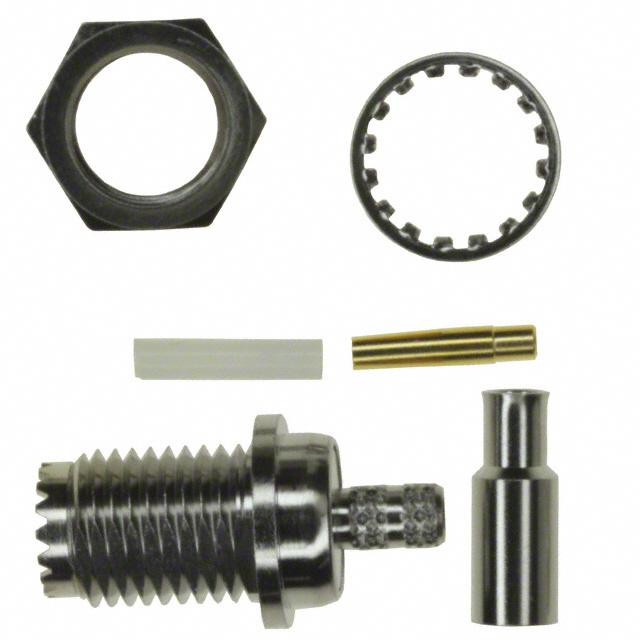

6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Nut, 1 Sleeve, 1 Washer
Frequency - Max:
2.5 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Package:
Bulk
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Series:
-
Contact Termination:
Crimp
Base Product Number:
1823
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 182317. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The phosphor bronze material is utilised for designing its center contacts. The product has -55°c ~ 85°c operating temperature range. It comes in uhf, mini connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. Moreover, the product has a nominal 335 v voltage rating. In addition, it is reach affected. The product is also supplied with 6 pcs - 1 connector, 1 contact, 1 ferrule, 1 nut, 1 sleeve, 1 washer. It maximum frequency is 2.5 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-174, 188, 188a, 316, lmr-100, m17/119-rg174. It is shipped in bulk package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in panel mount configuration. It also incorporates crimp contact terminals. Moreover, it corresponds to 1823, a base product number of the product. The product is designated with the ear99 code number.
