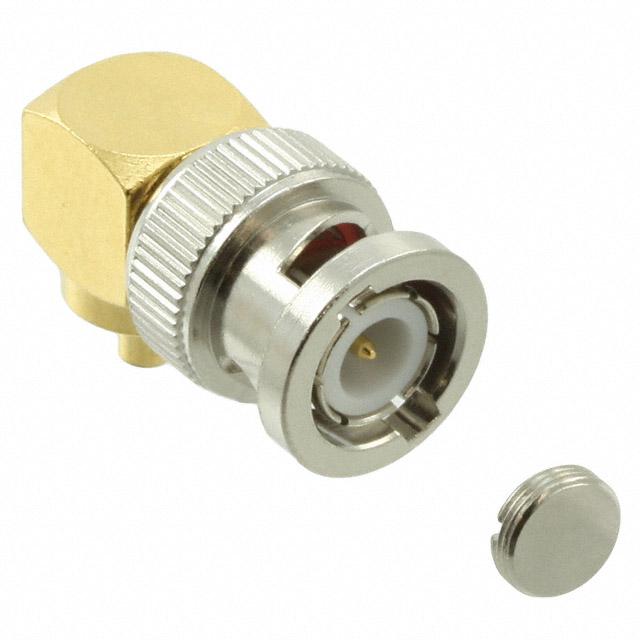

Amphenol RF 112614

112614 Amphenol RF
Amphenol RF

Product Information

Shield Termination:
Solder
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-
Connector Style:
BNC
Body Finish:
Gold, Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.2dB
standardLeadTime:
14 Weeks
Voltage Rating:
500 V
REACH Status:
REACH Affected
Includes:
2 pcs - 1 Connector, 1 End Cap
Frequency - Max:
4 GHz
Housing Color:
Gold, Silver
Impedance:
50 Ohms
Cable Group:
RG-405 (.085", .086" Semi Rigid)
Package:
Bag
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line), Right Angle
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
1126
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 112614. It has a solder shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. It comes in bnc connector style. The body is galvanized with nice finishing of gold, nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.2db of insertion loss. It has a long 14 weeks standard lead time. Moreover, the product has a nominal 500 v voltage rating. In addition, it is reach affected. The product is also supplied with 2 pcs - 1 connector, 1 end cap. It maximum frequency is 4 ghz. It has an integral gold, silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-405 (.085", .086" semi rigid). It is shipped in bag package . plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line), right angle configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 1126, a base product number of the product. The product is designated with the ear99 code number.
