Amphenol RF 122499

122499 Amphenol RF
Amphenol RF

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-
Connector Style:
TNC
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.18dB
Center Contact Plating:
Gold
title:
122499
Shield Termination:
Crimp
REACH Status:
REACH Affected
Includes:

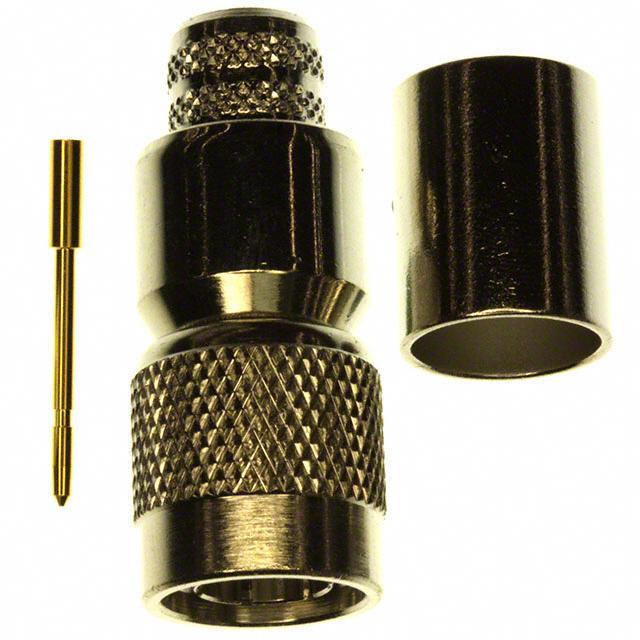

3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Frequency - Max:
1 GHz
Housing Color:
Silver
Impedance:
75 Ohms
Cable Group:
RG-11, 11A, 391, 392, Belden 1620, 1859, 7731, 8213, 9292
Voltage Rating:
500 V
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Packaging:
Bulk
Contact Termination:
Crimp
Base Product Number:
1224
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 122499. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. It comes in tnc connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.18db of insertion loss. The center contact is plated with a [Center Contract Plating]. It has a crimp shield termination. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 contact, 1 ferrule. It maximum frequency is 1 ghz. It has an integral silver housing colour. It has an impedance value of 75 ohms. Cable Group Options: rg-11, 11a, 391, 392, belden 1620, 1859, 7731, 8213, 9292. Moreover, the product has a nominal 500 v voltage rating. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. In addition, bulk is the available packaging type of the product. It also incorporates crimp contact terminals. Moreover, it corresponds to 1224, a base product number of the product. The product is designated with the ear99 code number.
