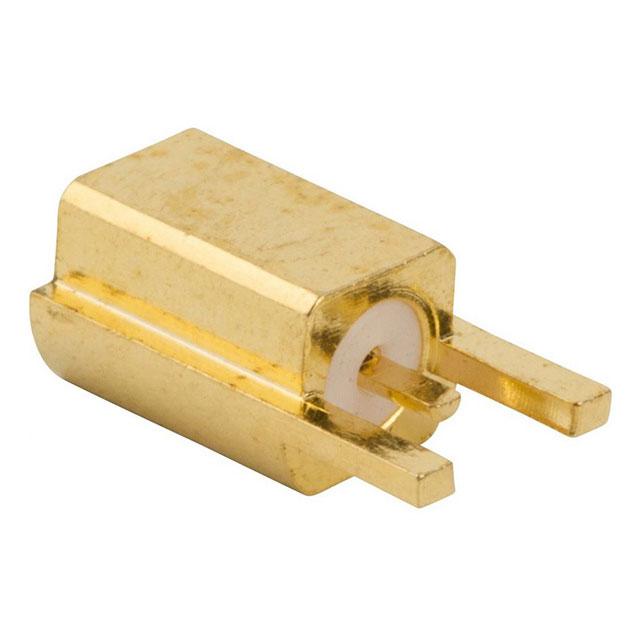

Amphenol RF 262115

262115 Amphenol RF
262115
Amphenol RF

Product Information

Shield Termination:
Solder
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-
Connector Style:
MMCX
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
Center Contact Plating:
Gold
Voltage Rating:
170 V
REACH Status:
REACH Affected
Includes:
-
edacadModel:
262115 Models
Frequency - Max:
6 GHz
Housing Color:
Gold
edacadModelUrl:
/en/models/3125411
Impedance:
50 Ohms
Cable Group:
-
Package:
Bulk
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Board Edge, Cutout; Surface Mount
Series:
-
Contact Termination:
Solder
Base Product Number:
2621
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 262115. It has a solder shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The beryllium copper material is utilised for designing its center contacts. It comes in mmcx connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. The center contact is plated with a [Center Contract Plating]. Moreover, the product has a nominal 170 v voltage rating. In addition, it is reach affected. It maximum frequency is 6 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. It is shipped in bulk package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in board edge, cutout; surface mount configuration. It also incorporates solder contact terminals. Moreover, it corresponds to 2621, a base product number of the product. The product is designated with the ear99 code number.
