Amphenol RF 122286

122286 Amphenol RF
Amphenol RF

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-
Connector Style:
TNC
Body Finish:
Nickel
Dielectric Material:
Polyoxymethylene (POM) Acetal
Insertion Loss:
0.18dB
standardLeadTime:
12 Weeks
title:
122286
Shield Termination:
Clamp
REACH Status:
REACH Affected
Includes:

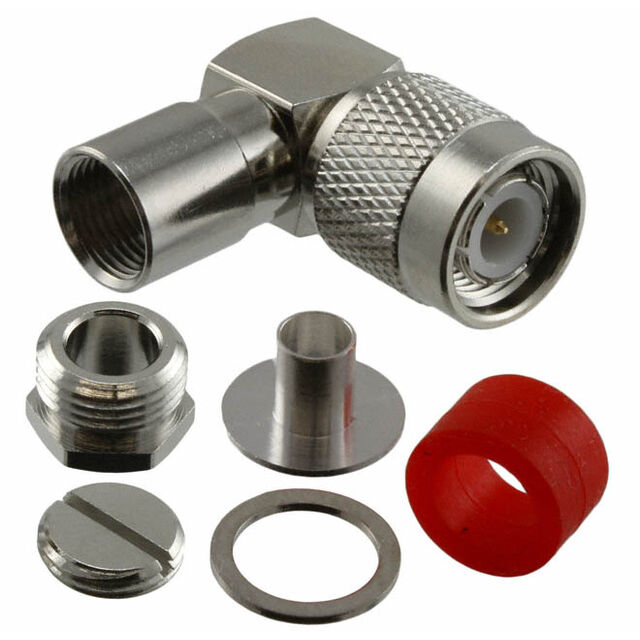

6 pcs - 1 Connector, 1 Clamp, 1 End Cap, 1 Insulator, 1 Top Hat, 1 Washer
Frequency - Max:
11 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Voltage Rating:
500 V
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
Weatherproof
Features:
-
Mounting Type:
Free Hanging (In-Line), Right Angle
Series:
-
Center Contact Plating:
Gold
Packaging:
Bag
Contact Termination:
Solder
Base Product Number:
1222
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 122286. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. It comes in tnc connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polyoxymethylene (pom) acetal dielectric material. Allows 0.18db of insertion loss. It has a long 12 weeks standard lead time. It has a clamp shield termination. In addition, it is reach affected. The product is also supplied with 6 pcs - 1 connector, 1 clamp, 1 end cap, 1 insulator, 1 top hat, 1 washer. It maximum frequency is 11 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-58, 58a, 58b, 58c, 141, 303, lmr-195, belden b7806a, 9907. Moreover, the product has a nominal 500 v voltage rating. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. It is IP rated with weatherproof. The product is available in free hanging (in-line), right angle configuration. The center contact is plated with a [Center Contract Plating]. In addition, bag is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to 1222, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
122286 Drawing(Datasheets)
