Amphenol RF 132280RP

132280RP Amphenol RF
132280RP
Amphenol RF

Product Information

Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
RP-SMA
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
14 Weeks
Voltage Rating:
500 V
REACH Status:
REACH Affected
Includes:

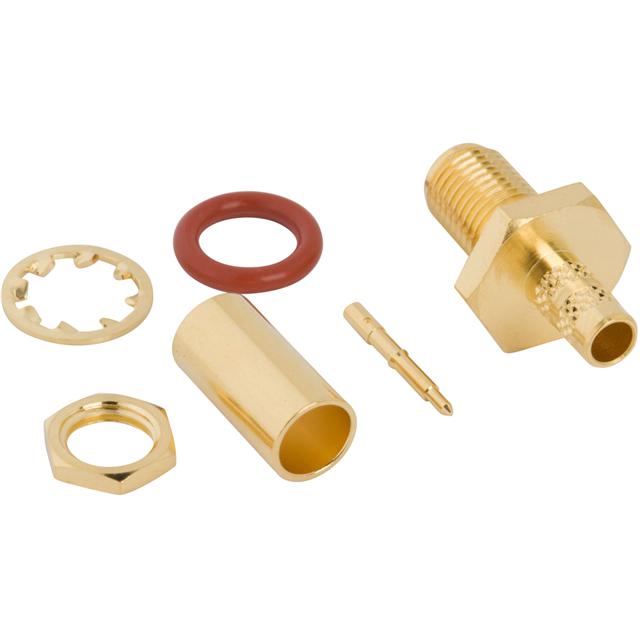

6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
Frequency - Max:
12.4 GHz
Housing Color:
Gold
Impedance:
50 Ohms
Cable Group:
RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Package:
Bulk
Connector Type:
Jack, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
Weatherproof
Features:
-
Mounting Type:
Panel Mount
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
132280
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 132280RP. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The brass material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in rp-sma connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 14 weeks standard lead time. Moreover, the product has a nominal 500 v voltage rating. In addition, it is reach affected. The product is also supplied with 6 pcs - 1 connector, 1 contact, 1 ferrule, 1 gasket, 1 lockwasher, 1 nut. It maximum frequency is 12.4 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-58, 58a, 58b, 58c, 141, 303, lmr-195, belden b7806a, 9907. It is shipped in bulk package . jack, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. It is IP rated with weatherproof. The product is available in panel mount configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 132280, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
132280RP Drawing(Product Drawings)
