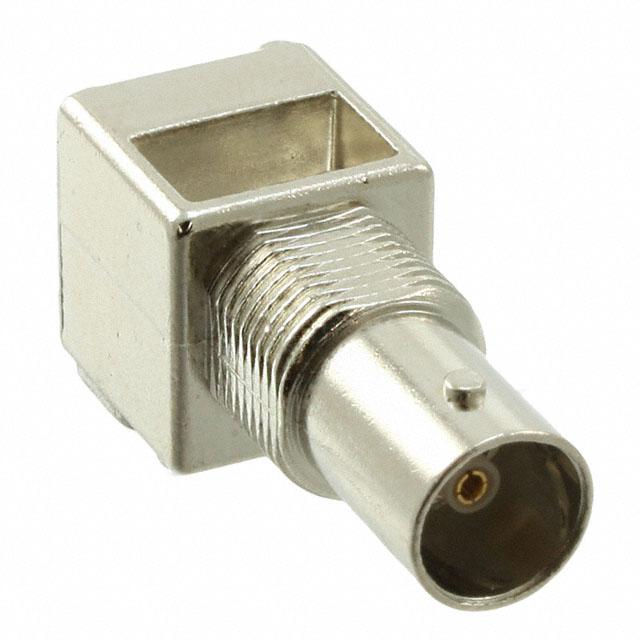

Amphenol RF 112503

112503 Amphenol RF
Amphenol RF

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead
Center Contact Material:
Phosphor Bronze
Operating Temperature:
-
Connector Style:
BNC
Body Finish:
Nickel
Dielectric Material:
Polypropylene (PP)
Insertion Loss:
-
standardLeadTime:
12 Weeks
title:
112503
Shield Termination:
Solder
REACH Status:
REACH Affected
Includes:
-
Frequency - Max:
4 GHz
Housing Color:
Silver
Impedance:
75 Ohms
Cable Group:
-
Voltage Rating:
500 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Zinc Die Cast
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Panel Mount, Through Hole, Right Angle
Series:
-
Center Contact Plating:
Gold
Packaging:
Bag
Contact Termination:
Solder
Base Product Number:
1125
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 112503. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead. The phosphor bronze material is utilised for designing its center contacts. It comes in bnc connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polypropylene (pp) dielectric material. It has a long 12 weeks standard lead time. It has a solder shield termination. In addition, it is reach affected. It maximum frequency is 4 ghz. It has an integral silver housing colour. It has an impedance value of 75 ohms. Moreover, the product has a nominal 500 v voltage rating. jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from zinc die cast materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The splendid features of the product include board lock. The product is available in panel mount, through hole, right angle configuration. The center contact is plated with a [Center Contract Plating]. In addition, bag is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to 1125, a base product number of the product. The product is designated with the ear99 code number.
