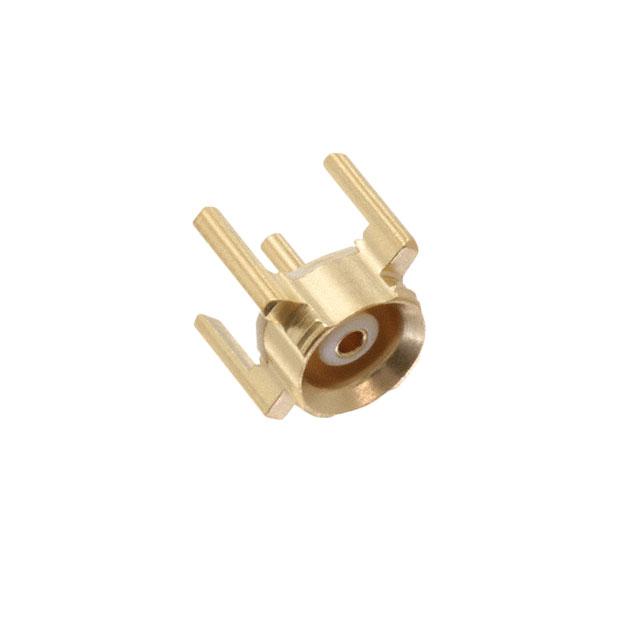

Radiall USA, Inc. R223425000W

R223425000W Radiall USA, Inc.
Radiall USA, Inc.

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-55°C ~ 155°C
Connector Style:
MMBX
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
9 Weeks
title:
R223425000W
Shield Termination:
Solder
Includes:
-
Frequency - Max:
12.4 GHz
Housing Color:
Gold
Impedance:
50 Ohms
Cable Group:
-
Connector Type:
Receptacle, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
100
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
-
Center Contact Plating:
Gold
Packaging:
Bulk
Contact Termination:
Solder
Base Product Number:
R22342
ECCN:
EAR99
Checking for live stock

This is manufactured by Radiall USA, Inc.. The manufacturer part number is R223425000W. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The beryllium copper material is utilised for designing its center contacts. The product has -55°c ~ 155°c operating temperature range. It comes in mmbx connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 9 weeks standard lead time. It has a solder shield termination. It maximum frequency is 12.4 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. receptacle, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 100. The product is available in through hole configuration. The center contact is plated with a [Center Contract Plating]. In addition, bulk is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to r22342, a base product number of the product. The product is designated with the ear99 code number.
