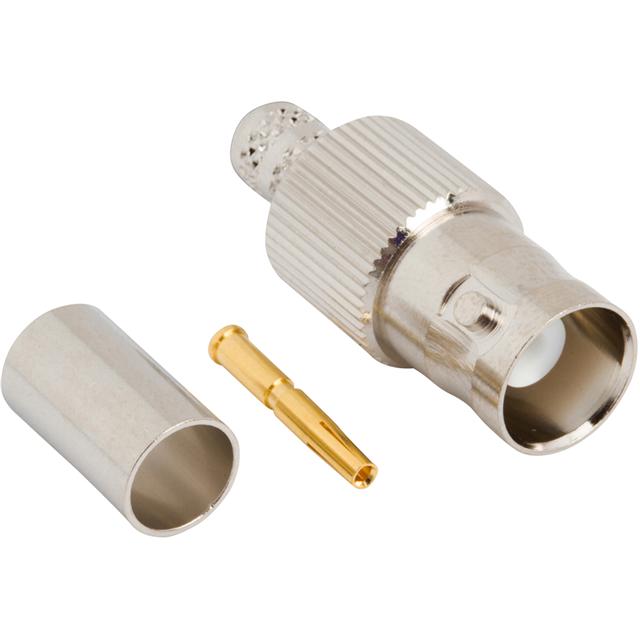

Amphenol RF 112146

112146 Amphenol RF
112146
Amphenol RF

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Phosphor Bronze
Operating Temperature:
-
Connector Style:
BNC
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.2dB
Center Contact Plating:
Gold
title:
112146
Shield Termination:
Crimp
REACH Status:
REACH Affected
Includes:
3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Frequency - Max:
4 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Voltage Rating:
500 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Packaging:
Bulk
Contact Termination:
Crimp
Base Product Number:
1121
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 112146. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The phosphor bronze material is utilised for designing its center contacts. It comes in bnc connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.2db of insertion loss. The center contact is plated with a [Center Contract Plating]. It has a crimp shield termination. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 contact, 1 ferrule. It maximum frequency is 4 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-59, 59b, 62, 140, 210, belden 8241, 8263, 8279, 9209. Moreover, the product has a nominal 500 v voltage rating. jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. In addition, bulk is the available packaging type of the product. It also incorporates crimp contact terminals. Moreover, it corresponds to 1121, a base product number of the product. The product is designated with the ear99 code number.
