Amphenol RF 112509

112509 Amphenol RF
Amphenol RF

Product Information

Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-
Connector Style:
BNC
Body Finish:
Nickel
Dielectric Material:
Polyoxymethylene (POM) Acetal
Insertion Loss:
-
Center Contact Plating:
Gold
Voltage Rating:
500 V
REACH Status:
REACH Affected
Includes:

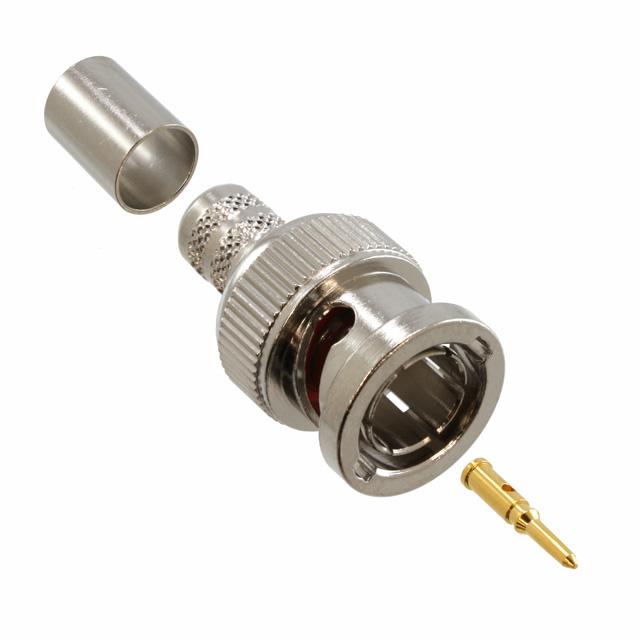

3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Frequency - Max:
4 GHz
Housing Color:
Silver
Impedance:
75 Ohms
Cable Group:
RG-59, Belden 1426A, 1505A, 8281, 9100, 9278
Package:
Bag
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Contact Termination:
Crimp
Base Product Number:
1125
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 112509. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The brass material is utilised for designing its center contacts. It comes in bnc connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polyoxymethylene (pom) acetal dielectric material. The center contact is plated with a [Center Contract Plating]. Moreover, the product has a nominal 500 v voltage rating. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 contact, 1 ferrule. It maximum frequency is 4 ghz. It has an integral silver housing colour. It has an impedance value of 75 ohms. Cable Group Options: rg-59, belden 1426a, 1505a, 8281, 9100, 9278. It is shipped in bag package . plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, bayonet lock is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. It also incorporates crimp contact terminals. Moreover, it corresponds to 1125, a base product number of the product. The product is designated with the ear99 code number.
