Amphenol RF 132240

132240 Amphenol RF
Amphenol RF

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
SMA
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
14 Weeks
Shield Termination:
Crimp
REACH Status:
REACH Affected
Includes:

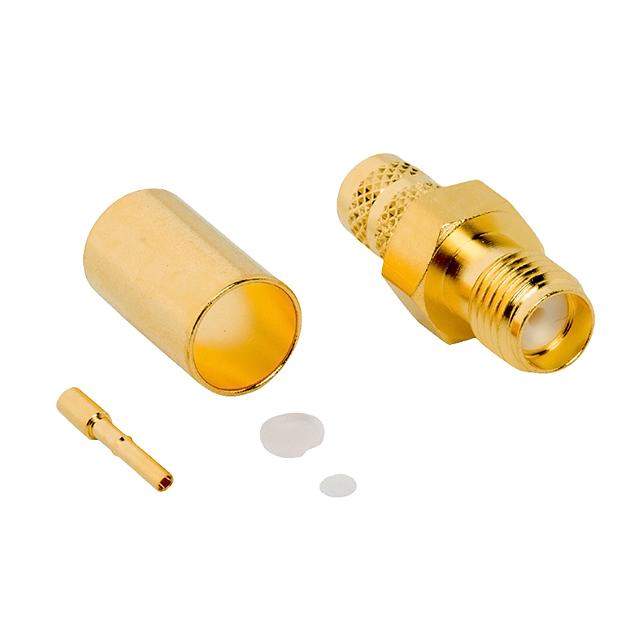

3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Frequency - Max:
12.4 GHz
Housing Color:
Gold
Impedance:
50 Ohms
Cable Group:
RG-8X, Belden 9258, LMR-240
Package:
Bag
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
1322
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 132240. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in sma connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 14 weeks standard lead time. It has a crimp shield termination. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 contact, 1 ferrule. It maximum frequency is 12.4 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-8x, belden 9258, lmr-240. It is shipped in bag package . jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 1322, a base product number of the product. The product is designated with the ear99 code number.
