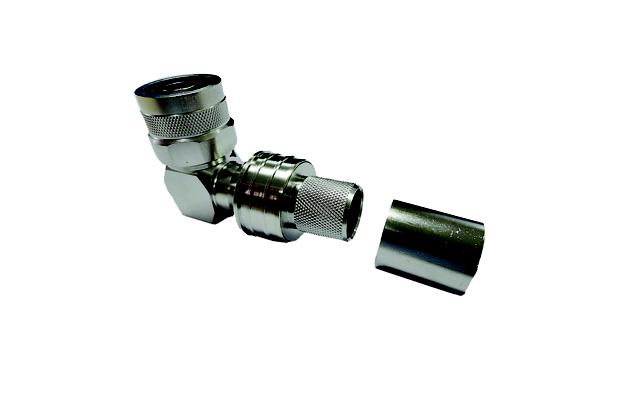

Amphenol Times Microwave Systems TC-500-NMH-RA-D

TC-500-NMH-RA-D Amphenol Times Microwave Systems
Amphenol Times Microwave Systems

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Center Contact Material:
Brass
Operating Temperature:
-55°C ~ 155°C
Connector Style:
N Type
Body Finish:
White Bronze
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
8 Weeks
title:
TC-500-NMH-RA-D
Shield Termination:
Crimp
Includes:
-
Frequency - Max:
6 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
LMR-500
Voltage Rating:
500 V
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line), Right Angle
Series:
TC
Center Contact Plating:
Gold
Packaging:
Bag
Contact Termination:
Solder
Base Product Number:
TC-500
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol Times Microwave Systems. The manufacturer part number is TC-500-NMH-RA-D. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The brass material is utilised for designing its center contacts. The product has -55°c ~ 155°c operating temperature range. It comes in n type connector style. The body is galvanized with nice finishing of white bronze. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 8 weeks standard lead time. It has a crimp shield termination. It maximum frequency is 6 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: lmr-500. Moreover, the product has a nominal 500 v voltage rating. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line), right angle configuration. The product tc, is a highly preferred choice for users. The center contact is plated with a [Center Contract Plating]. In addition, bag is the available packaging type of the product. It also incorporates solder contact terminals. Moreover, it corresponds to tc-500, a base product number of the product. The product is designated with the ear99 code number.
