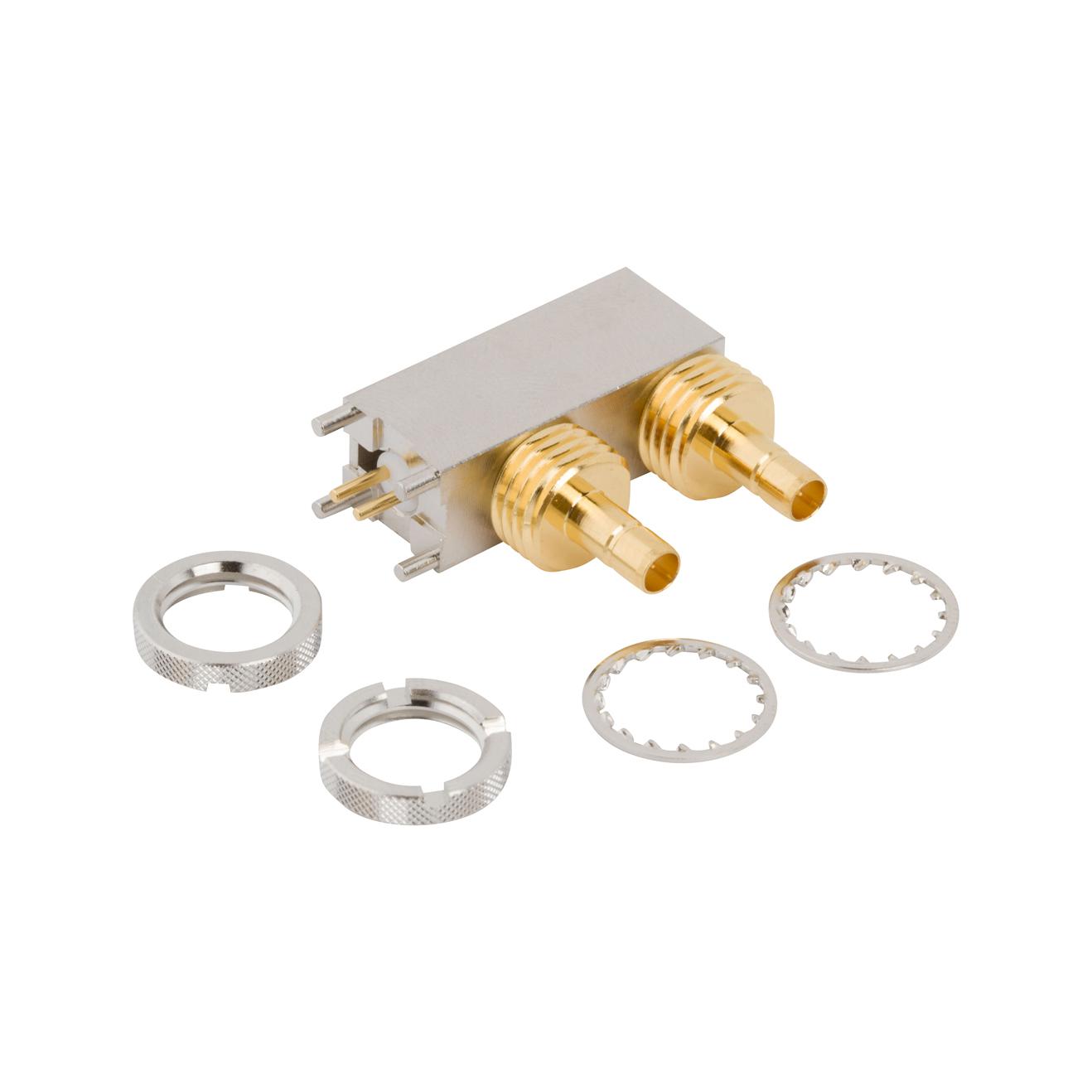

Amphenol RF 903-865J-71P

903-865J-71P Amphenol RF
Amphenol RF

Product Information

HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Brass
Operating Temperature:
-40°C ~ 85°C
Connector Style:
SMB, Mini
Body Finish:
Gold; Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
14 Weeks
Shield Termination:
Solder
REACH Status:
REACH Affected
Includes:
5 pcs - 1 Connector, 2 Lockwashers, 2 Nuts
edacadModel:
903-865J-71P Models
Frequency - Max:
100 MHz
Housing Color:
Gold, Silver
edacadModelUrl:
/en/models/8575245
Impedance:
75 Ohms
Cable Group:
-
Package:
Bulk
Connector Type:
Jack, Male Pin
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Ports:
2
Body Material:
Brass
Fastening Type:
Snap-On
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount, Through Hole, Right Angle
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
903-865J
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 903-865J-71P. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The brass material is utilised for designing its center contacts. The product has -40°c ~ 85°c operating temperature range. It comes in smb, mini connector style. The body is galvanized with nice finishing of gold; nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 14 weeks standard lead time. It has a solder shield termination. In addition, it is reach affected. The product is also supplied with 5 pcs - 1 connector, 2 lockwashers, 2 nuts. It maximum frequency is 100 mhz. It has an integral gold, silver housing colour. It has an impedance value of 75 ohms. It is shipped in bulk package . jack, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. This product features 2 number of ports. The product's body is nicely designed from brass materials. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in panel mount, through hole, right angle configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates solder contact terminals. Moreover, it corresponds to 903-865j, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
903-865J-71P Drawing(Product Drawings)
