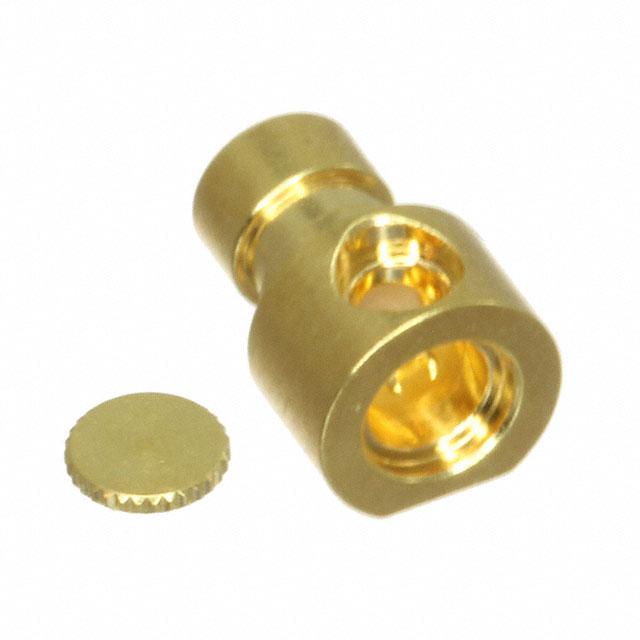

Cinch Connectivity Solutions Johnson 125-0593-101

125-0593-101 Cinch Connectivity Solutions Johnson
Cinch Connectivity Solutions Johnson

Product Information

Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
SMPM
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.54dB
standardLeadTime:
13 Weeks
Voltage Rating:
325 V
Includes:
2 pcs - 1 Connector, 1 End Cap
edacadModel:
125-0593-101 Models
Frequency - Max:
20 GHz
Housing Color:
Gold
edacadModelUrl:
/en/models/9471783
Impedance:
50 Ohms
Cable Group:
RG-405 (.086 Semi Rigid)
Package:
Bulk
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
Not Applicable
Number of Ports:
1
Body Material:
Beryllium Copper
Fastening Type:
Snap-On
Mating Cycles:
100
Ingress Protection:
-
Features:
Full Detent
Mounting Type:
Free Hanging (In-Line), Right Angle
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Crimp
Base Product Number:
125-0593
ECCN:
EAR99
Checking for live stock

This is manufactured by Cinch Connectivity Solutions Johnson. The manufacturer part number is 125-0593-101. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The beryllium copper material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in smpm connector style. The body is galvanized with nice finishing of gold. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.54db of insertion loss. It has a long 13 weeks standard lead time. Moreover, the product has a nominal 325 v voltage rating. The product is also supplied with 2 pcs - 1 connector, 1 end cap. It maximum frequency is 20 ghz. It has an integral gold housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-405 (.086 semi rigid). It is shipped in bulk package . plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. This product features 1 number of ports. The product's body is nicely designed from beryllium copper materials. Furthermore, snap-on is the Fastening Type of the product. It provides best efficiency with mating cycles of 100. The splendid features of the product include full detent. The product is available in free hanging (in-line), right angle configuration. The center contact is plated with a [Center Contract Plating]. It also incorporates crimp contact terminals. Moreover, it corresponds to 125-0593, a base product number of the product. The product is designated with the ear99 code number.
